Description

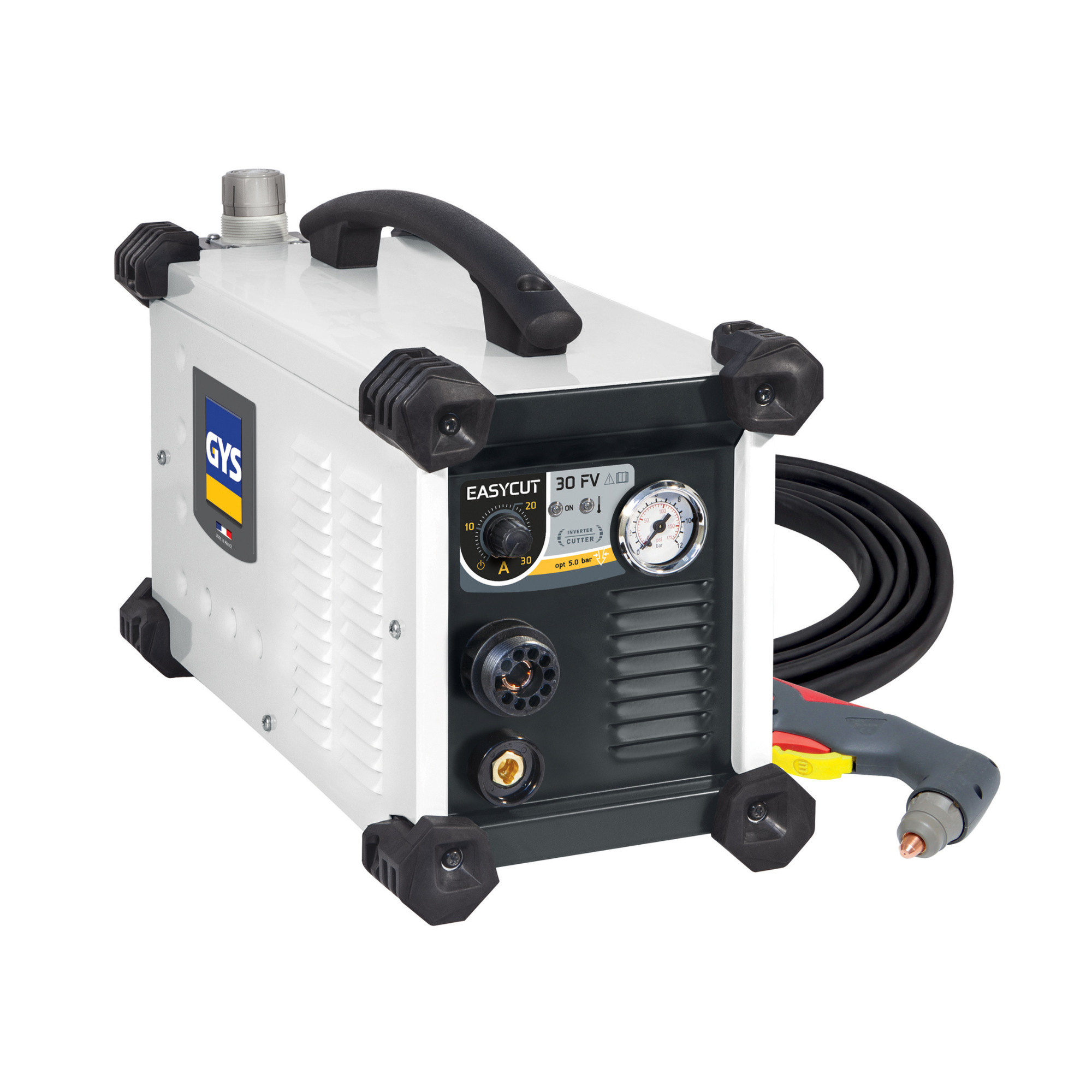

EASYCUT 30 FV – Product Overview
EASYCUT 30 FV is a 30A plasma cutter with a cutting capacity of 10mm thick for steel (severance cut up to 15mm). The HF-free arcing system preserves and increases the consumables life span. Designed for maintenance jobs and car body repairs, it integrates robust mechanical parts along with an intuitive interface and flowmeter on the front panel.
Effective in Any Environment
- Inverter technology to ensure quality cut on all types of steel (mild, stainless, tempered, HSS), aluminum, copper, etc.
- Consumables replacement is fast & easy for a maximum productivity.
- Intuitive display: potentiometer to adjust the output current according to the thickness and material to cut.
- Manual adjustment of the air pressure (2.5 to 9 bars) with flowmeter on the front panel.
- HF-free ignition to prevent disturbances that could damage nearby electrical equipment.
Ergonomic Torch
- Detachable 4m cutting torch for convenient storage and easy replacement.
- Premium cutting quality: the torch is air cooled offering a great arc stability for all types of work.
- Easy to use trigger mechanism for added comfort.
- Designed to be shock and heat resistant.
High-Tech Power Supply
- Flexible Voltage: the machine will work on a single phase power supply from 85 to 265V.
- PFC technology (Power Factor Correction): the electrical power supply usage is optimized for up to 30% energy savings.
Robust & Practical
- Reinforced structure & non-slip rubber feet.
- Detachable cutting torch and earth clamp.
- Compact, lightweight and portable.
Cutting Performance
Severance cut: Steel 15 mm; Al/CrNi 10 mm.
Clean cut: Steel 10 mm; Al/CrNi 8 mm.
Technical Specifications
Part Number: 013858
Power Supply: 230 V single-phase / 110 V single-phase
Current: 10–30 A
Air Pressure: 2.5–9 bar
Air Consumption: 115 l/min
Dimensions: 45 × 28 × 20 cm
Weight: 10.8 kg
