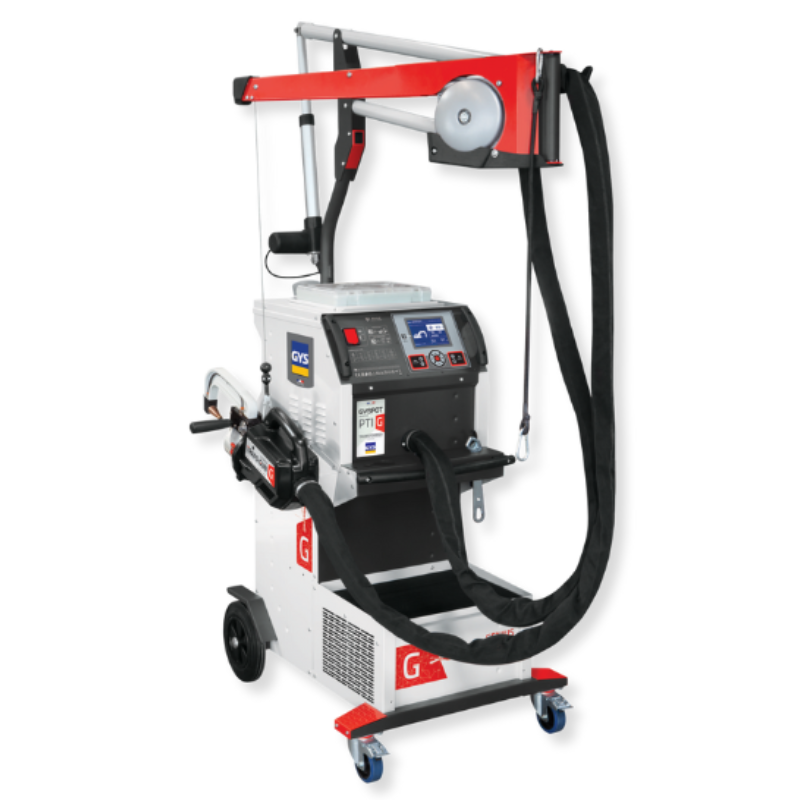

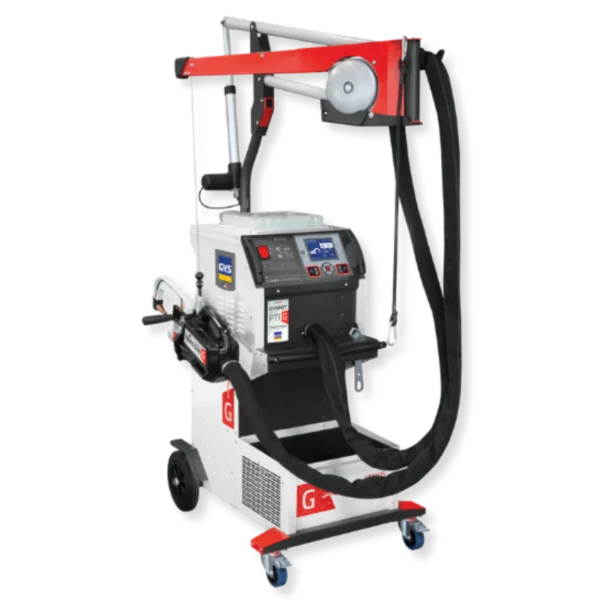

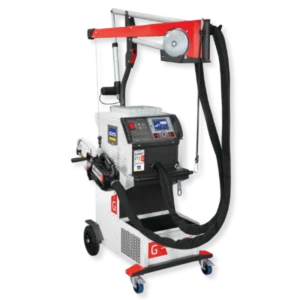

GYSPOT PTI GENIUS BMW C7502654 – 400 V Resistance Spot Welder
The GYS GYSPOT PTI GENIUS BMW C7502654 is a professional 400 V, three-phase resistance spot welder featuring BMW-specific software, intelligent automatic welding controls, and a motorized overhead arm. Designed for demanding collision repair applications, this advanced welding system combines precision, efficiency, and operator convenience.
Its intelligent AUTO mode automatically recognizes steel type, sheet-metal thickness, panel bonding, and insulating materials between HSS, VHSS, UHSS, and boron steel sheets. The GENIUS G-clamp provides pneumatic opening, remote operation, and automatic cooling connections for efficient welding.
Key Features
- BMW-specific welding software
- 14,500 A welding current
- 550 daN clamping force at 8 bar
- Intelligent AUTO welding mode
- Motorized overhead arm extending 120 cm from the power source
- Lightweight GENIUS G-clamp weighing 11.3 kg with G1 arm
- 80 mm automatic clamp opening capacity
- Liquid-cooled transformer, rectifier, electrodes, and caps
- 5.7-inch LCD display
- Welding traceability with SD card recording
- Reinforced mobile trolley with 30-liter coolant tank
- Tool-free welding arm removal
- Automatic electrode pressure adjustment
Technical Specifications
| Model | GYSPOT PTI GENIUS BMW C7502654 |
|---|---|
| Power Supply | 3 × 400 V, 50/60 Hz, three-phase |
| Welding Current | 14,500 A |
| Clamping Force | 550 daN at 8 bar |
| Maximum Welding Rate | 20 spots/min |
| Clamp Weight | 11.3 kg with G1 arm |
| Dimensions | 71 × 90 × 200 cm |
| Machine Weight | 107 kg |
| Protection Rating | IP20 |
| Welding Standard | EN 62135-1 |
