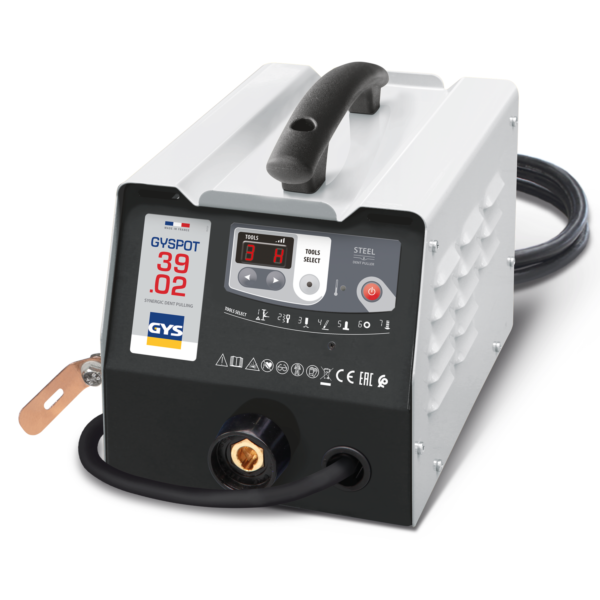

GYSPOT 39.02 – Product Overview
The GYSPOT 39.02 052215 is a 230 V steel dent puller with a 3,800 A output current, designed for steel straightening and dent-pulling applications. Its automatic gun and user-friendly control panel make the machine simple to operate.
User-Friendly Operation
- Output power: Select from 11 levels.
- Tool selection: Choose from seven tools.
- No need to select the welding current or welding time.
Automatic Triggering
The welding process is triggered automatically by simple contact between the tool and the part to be straightened.
Steel Dent-Pulling Applications
The GYSPOT 39.02 is designed for steel straightening and dent-pulling work. Its automatic gun and straightforward controls allow the operator to select the output power level and tool.
Technical Specifications
Part Number: 052215
Power Supply: 230 V single-phase
Maximum Current: 3,800 A
Gun Operation: Automatic
Power Settings: 11 levels
Tool Selections: 7 tools
Secondary Voltage: 7.4 V
Fuse: 16 A
RMS Current: 2,800 A
Dimensions: 22.5 × 36 × 23.5 cm
Weight: 23 kg
