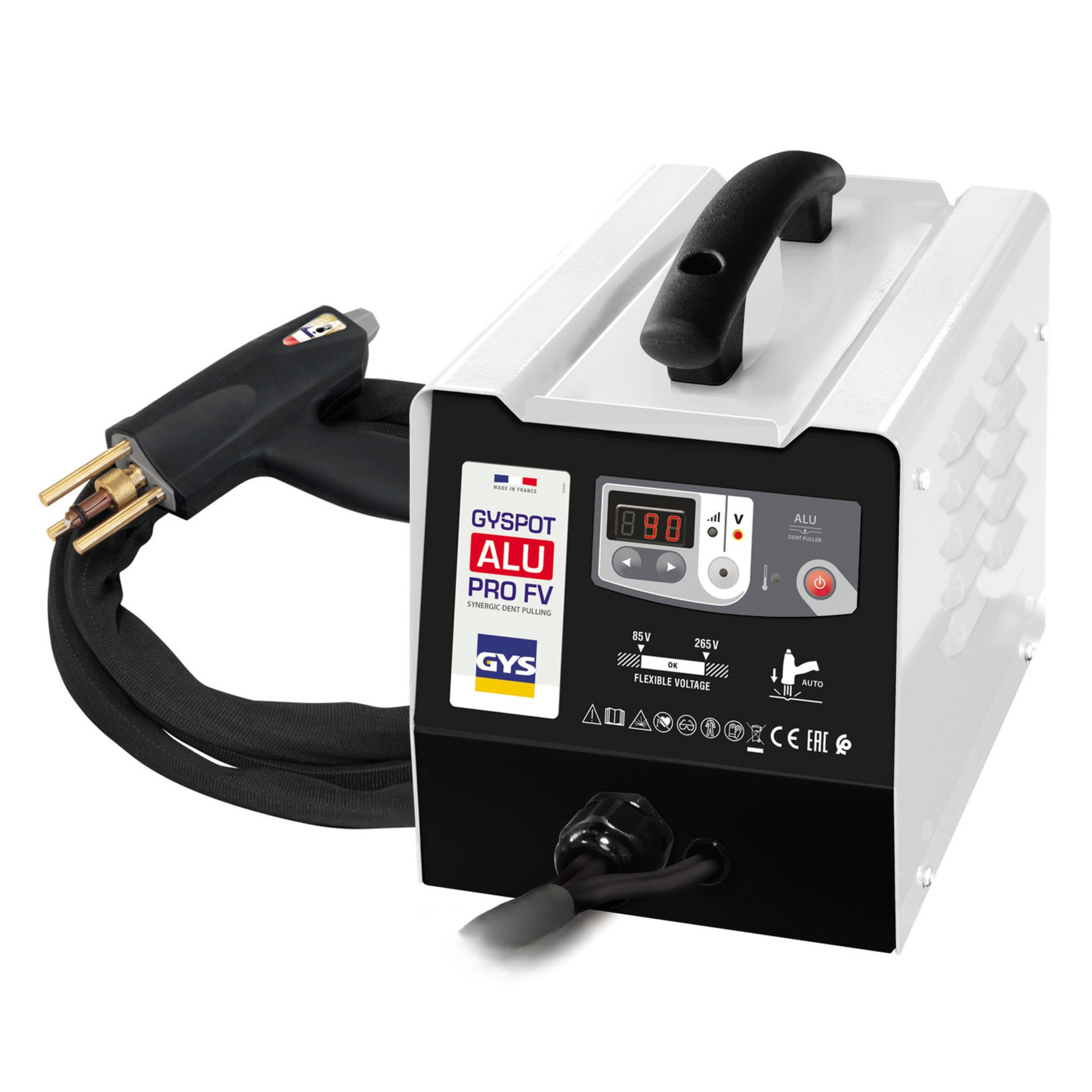

GYSPOT ALU PRO FV – Product Overview
The GYSPOT ALU PRO FV 021990 is dedicated to straightening aluminum body components. The station uses capacitor discharge welding of M4, M5 and M6 studs to eliminate dents and impacts on areas such as door panels and hoods without stripping.
Microprocessor Control
- Voltage mode: adjustable from 50 V to 200 V.
- Power mode: adjustable from 0 to 10.
Capacitor Discharge Welding
- 66 mF capacitor discharge technology.
- Fast welding in 3 milliseconds.
- Capacitor discharge welding of M4, M5 and M6 studs.
Automatic Welding Gun
- The gun has no trigger; welding is triggered automatically when the tip slides into the gun.
- Three brass earth terminals integrated into the gun.
- Manual spring force adjustment.
- Spring-loaded brass studs adapt to all surfaces.
Flexible Voltage
The GYSPOT ALU PRO FV operates with a supply voltage between 85 and 265 V. Thanks to its Flexible Voltage power supply, it can be plugged into a 230 V – 2 A or 110 V – 5 A socket.
Aluminum Body Repair
The station is designed for straightening aluminum body components and welding studs to eliminate dents and impacts without stripping. It is suitable for areas such as door panels and hoods.
Technical Specifications
Part Number: 021990
Power Supply: 85–265 V single-phase
Stud Sizes: M4, M5 and M6
Capacitor Discharge: 66 mF
Voltage Adjustment: 50–200 V
Power Adjustment: 0–10
Maximum Current: 13,000 A
Fuse: 5 A
Dimensions: 21 × 24 × 36 cm
Weight: 14 kg
