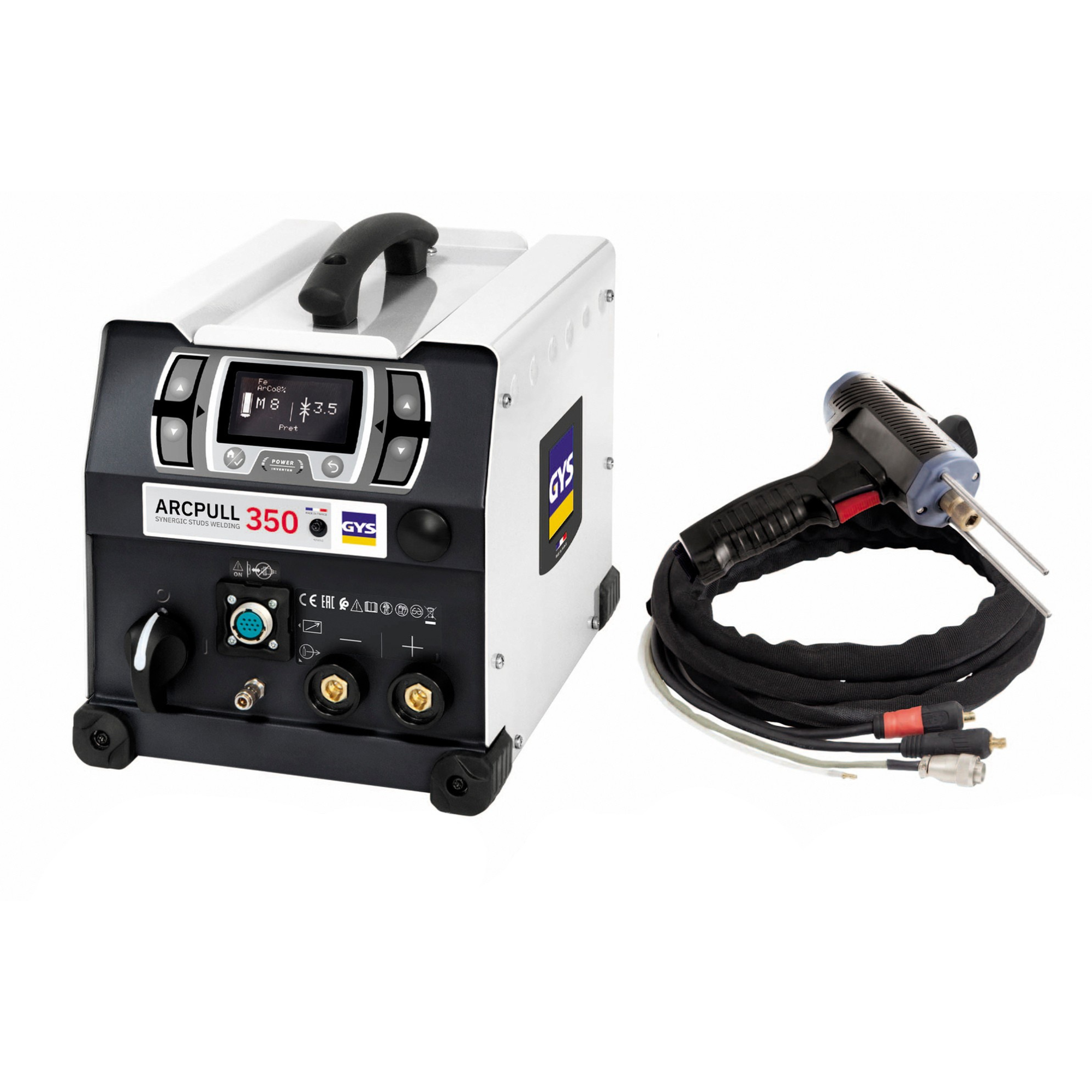

GYSPOT ARCPULL 350 – Product Overview
The GYSPOT ArcPull 350 is an arc-pull unit developed specifically for bodywork. It can weld steel and aluminum studs up to 8 mm in diameter. It is suitable for dent removal from sheet metal, with the installation of pull rings and rivet extraction pins. Its intuitive interface, polarity detection, synergies, motorized gun and single-phase 230 V AC operation make it easy to weld attachments.
Drawn Arc: The Professional Process
The drawn arc brings many advantages compared to capacitor discharge:
- Repeatability and reliability of the process.
- Complete welding and good penetration.
- Gas protection which prevents contamination of the weld.
- No finishing after welding.
- No deformation on thin sheets.
Breakthrough Innovation
The gun incorporates a linear motor, unique in the market. This innovation has unprecedented advantages:
- Superior control of the welding cycle.
- Process management by digital control requiring no adjustment.
- Gun with ground electrodes for an ideal current distribution around the stud.
- Ideal for removing self-piercing bodywork rivets.
- Simplicity and speed of execution.
2 Welding Modes
A digital interface provides intuitive and functional navigation between the welding modes:
- Synergic mode has preset settings for quick and easy use.
- The manual mode for experienced users allows personalized settings for a specific use.
Technical Specifications
Part Number: 082953
Power Supply: 208–240 V
Current Range: 10–350 A
Protection Rating: IP33
Dimensions: 30 × 24.5 × 22 cm
Weight: 11.3 kg
