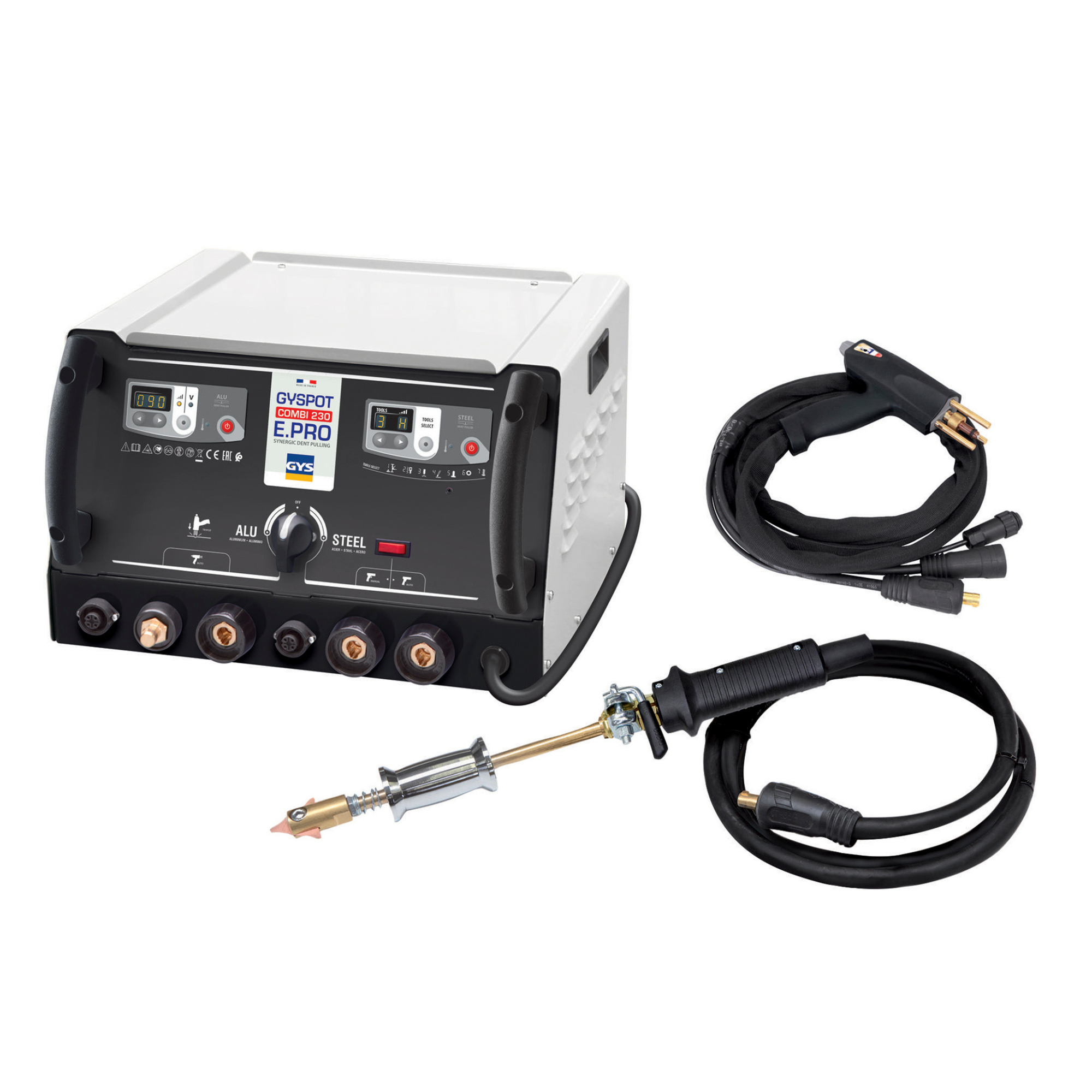

GYSPOT COMBI 230 E PRO 021266 – Product Overview
The GYSPOT COMBI 230 E PRO 021266 is a 2-in-1 dent-pulling machine for steel and aluminum car bodywork. It allows panel beaters to carry out dent-pulling operations on both materials without stripping or disassembling parts. Its ergonomic torch for steelwork and specialized aluminum torch help save time during repairs.
Steel Dent-Pulling Features
Two Adjustable Setting Parameters
- Output power level with 11 settings.
- Tool selection with a choice of seven tools.
- No need to select the welding current or welding time.
Manual-Trigger Torch
With the manual gun, welding takes place when the trigger is pressed and the tool has come into contact with the part being straightened.
Aluminum Dent-Pulling Features
Microprocessor Control and Digital Display
- Voltage adjustment from 50 to 200 V, with the machine remembering and displaying the previous voltage.
- Power level adjustment from 0 to 10.
- Stud presence detection.
- Torch-suitable, three-pin copper coupling.
Capacitive Discharge Technology
Powerful capacitive discharge technology (66 mF) for welding M4 studs on AlSi and AlMg aluminium sheets.
Steel and Aluminum Repair Applications
- Steel dent-pulling operations.
- Aluminum dent-pulling operations.
- Steelwork using an ergonomic dent-pulling torch.
- Aluminum sheet repairs using M4 studs.
Technical Specifications
Product: GYSPOT COMBI 230 E PRO
Part Number: 021266
Power Supply: 230 V
Maximum Steel Output: 3,800 A
Maximum Aluminum Output: 13,000 A
Aluminum Voltage: 50–200 V
Fuse: 16 A
Dimensions: 45 × 43 × 29 cm
Weight: 49.7 kg
