GYSPOT PTI GENIUS 6M – 024854 Resistance Spot Welder

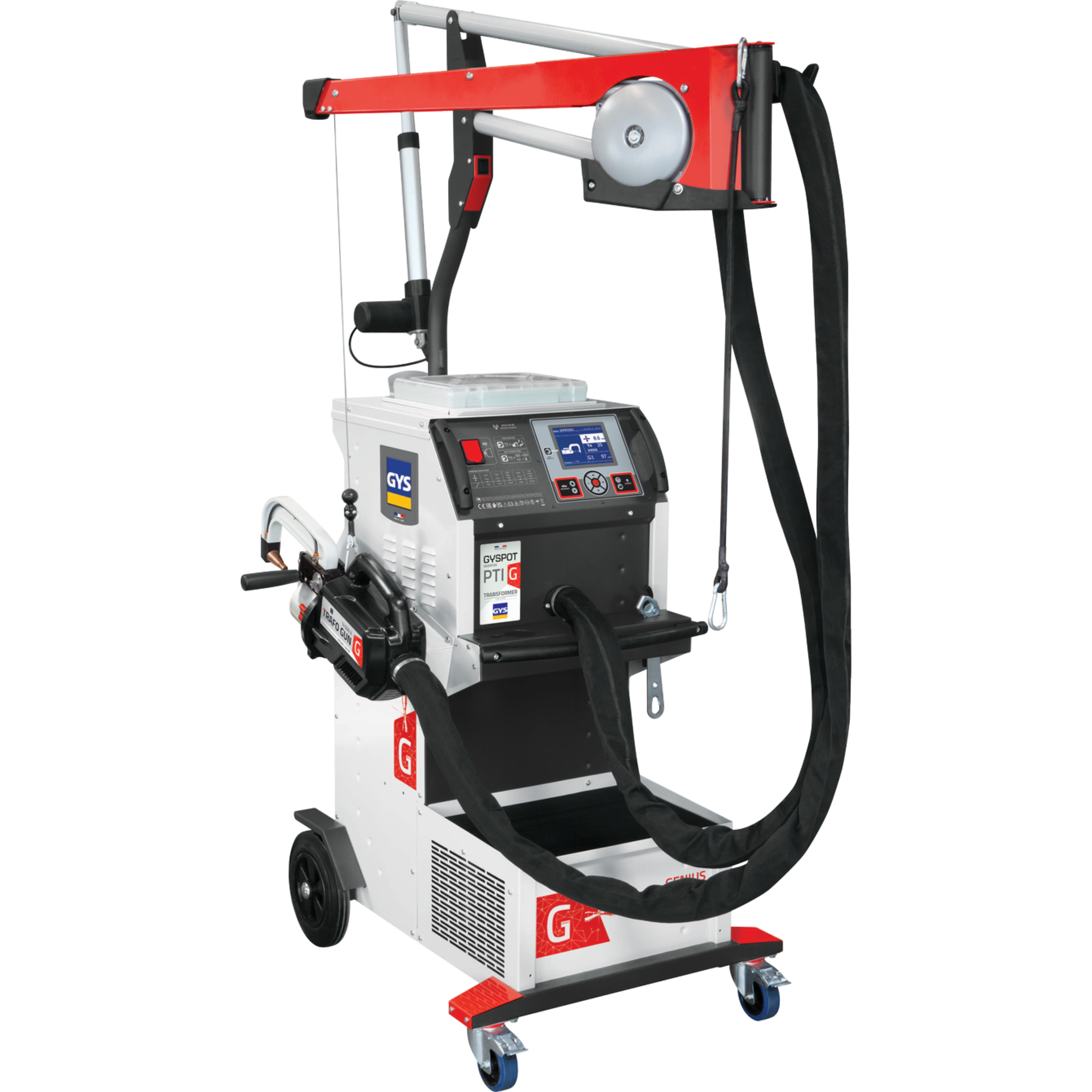

The GYS GYSPOT PTI GENIUS 6M is a 220 V, three-phase resistance spot welder featuring intelligent automatic welding controls and a motorized overhead arm. Its GENIUS G-clamp features pneumatic opening and an integrated transformer for professional automotive collision repair.
The intelligent AUTO mode recognizes steel type, sheet-metal thickness, panel bonding, and insulating materials. The motorized overhead arm adjusts to different working heights, while the liquid-cooled welding system supports demanding workshop applications.
Key Features
14,500 A Maximum Welding Current: Delivers up to 14,500 A at 220 V.
550 daN Clamping Force: Provides 550 daN at 8 bar air pressure.
Intelligent AUTO Welding Mode: Automatically recognizes steel type, sheet-metal thickness, panel bonding, and insulating materials.
Motorized Overhead Arm: Extends 120 cm from the power source and adjusts to the working height.
Lightweight GENIUS G-Clamp: Weighs 11.3 kg with the G1 arm.
80 mm Automatic Opening: Provides automatic clamp opening capacity of 80 mm.
Liquid-Cooled Welding System: Features cooling for the transformer, rectifier, electrodes, and caps.
5.7-Inch LCD Display: Provides navigation through the welding controls.
Welding Traceability: Records welding data to an SD card for transfer to a PC.
Reinforced Mobile Trolley: Features a 30-liter coolant tank.
Tool-Free Arm Removal: Allows welding arms to be removed without tools.
Automatic Electrode Pressure Adjustment: Automatically adjusts pressure between the electrodes.
Power Supply: 220 V, three-phase.
Maximum Welding Rate: Up to 20 spots per minute.
Machine Dimensions: 71 × 90 × 200 cm.
Machine Weight: 100 kg.
Protection Rating: IP20.
Welding Standard: EN 62135-1.
