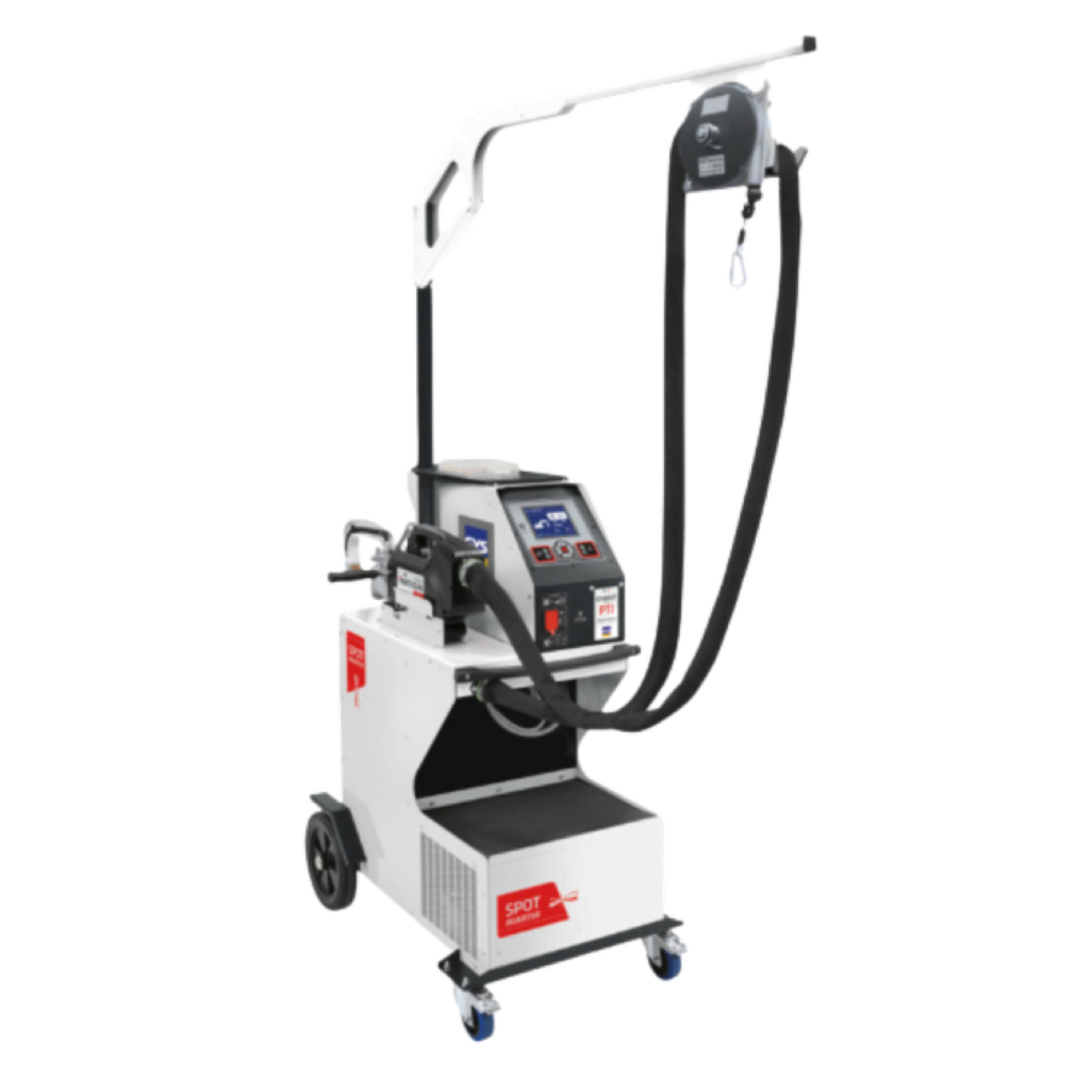

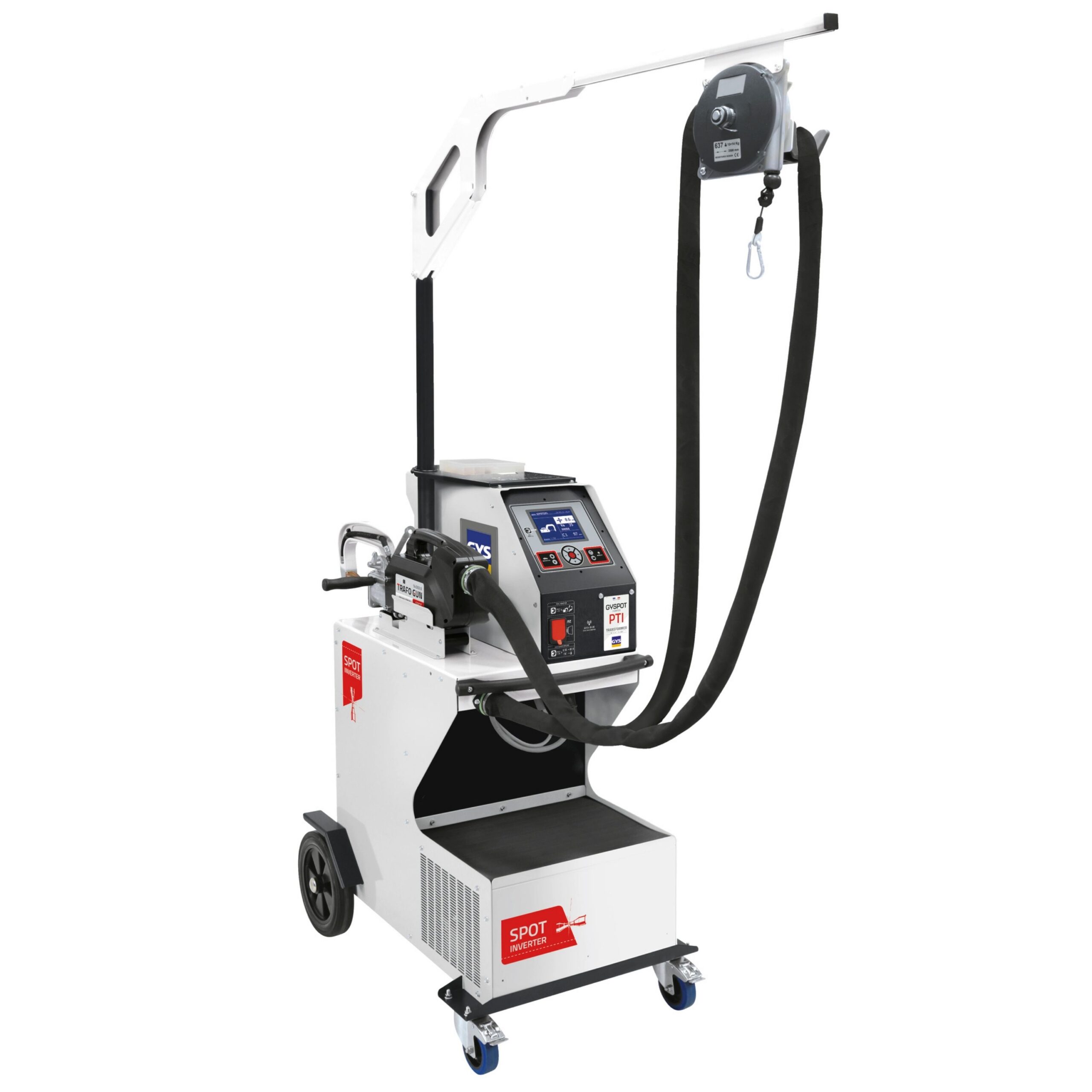

GYSPOT PTI-S7 4M – 022188 Resistance Spot Welder
The GYS GYSPOT PTI-S7 4M is a resistance spot welder designed for high-strength automotive steels, including UHSS and boron steel. It delivers up to 14,500 A welding current and 550 daN electrode force at 8 bar. Its integrated transformer and automatic welding parameters support professional collision repair.
The PTI-S7 features a liquid-cooled C-clamp, automatic welding parameter selection in AUTO mode, and a lightweight clamp design. Its integrated transformer reduces electrical consumption, while the remote clamp controls and cable support system improve ease of operation.
Key Features
14,500 A Maximum Welding Current: Delivers up to 14,500 A at 230 V.
550 daN Electrode Force: Provides 550 daN at 8 bar air pressure.
Automatic Welding Mode: Automatically sets welding parameters in AUTO mode.
Integrated Transformer: Liquid-cooled medium-frequency transformer integrated into the C-clamp.
Reduced Electrical Consumption: Uses approximately 40% less electricity than a cable-type machine, according to the GYS brochure.
Lightweight C-Clamp: Weighs 10 kg for easier handling.
High-Strength Steel Welding: Designed for UHSS and boron steel applications.
Liquid-Cooled Welding Arms: Cooling extends to the electrode tips.
Remote Clamp Controls: Allows operation directly from the clamp.
Cable Support: Features a telescopic support arm and cable bracket.
Constant Current Control: Provides controlled welding current with a low-current sound alert.
Electrode Force Control: Includes electrode force adjustment and a digital display of actual force.
GLUE Mode: Designed for welding sheets with glue or other coatings.
Seven Welding Modes: Offers seven operating modes for different welding requirements.
Welding Traceability: Records welding spot characteristics on an SD card for transfer to a PC.
Power Supply: 200/208/230/240 V, three-phase, 50/60 Hz.
Electrical Supply: 40 A delayed fuse rating specified in the technical data.
Clamp Cable Length: 4 m for the PTI-S7 4M configuration.
Machine Dimensions: 65 × 80 × 230 cm.
Machine Weight: 98.5 kg.
Welding Standard: EN 60974-1.
