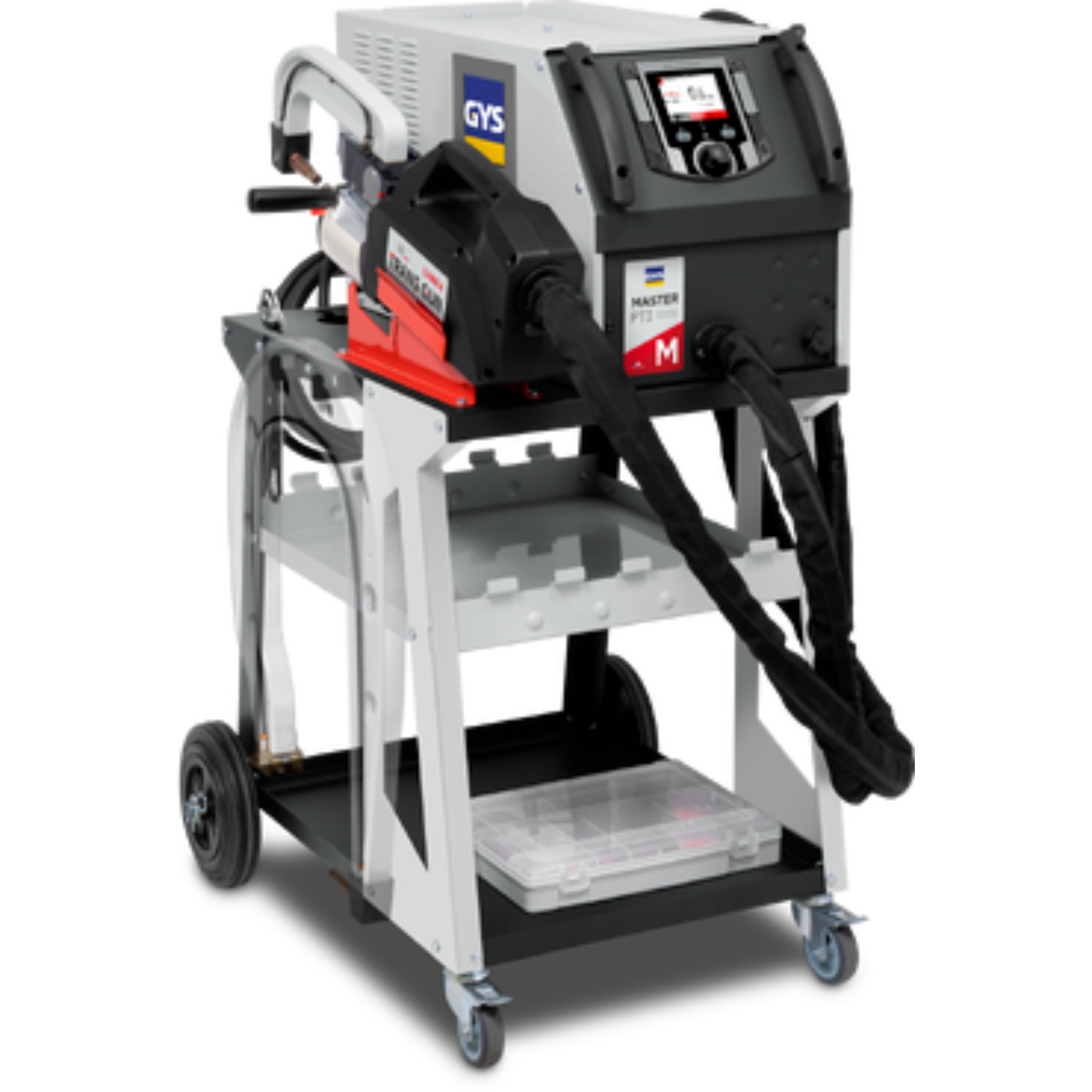

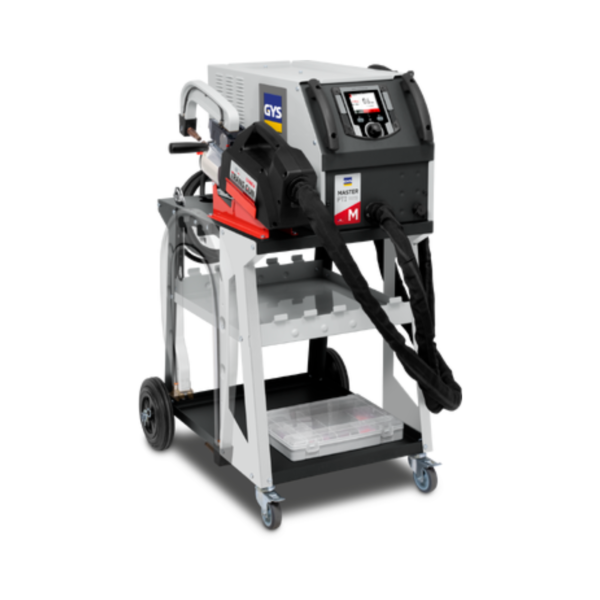

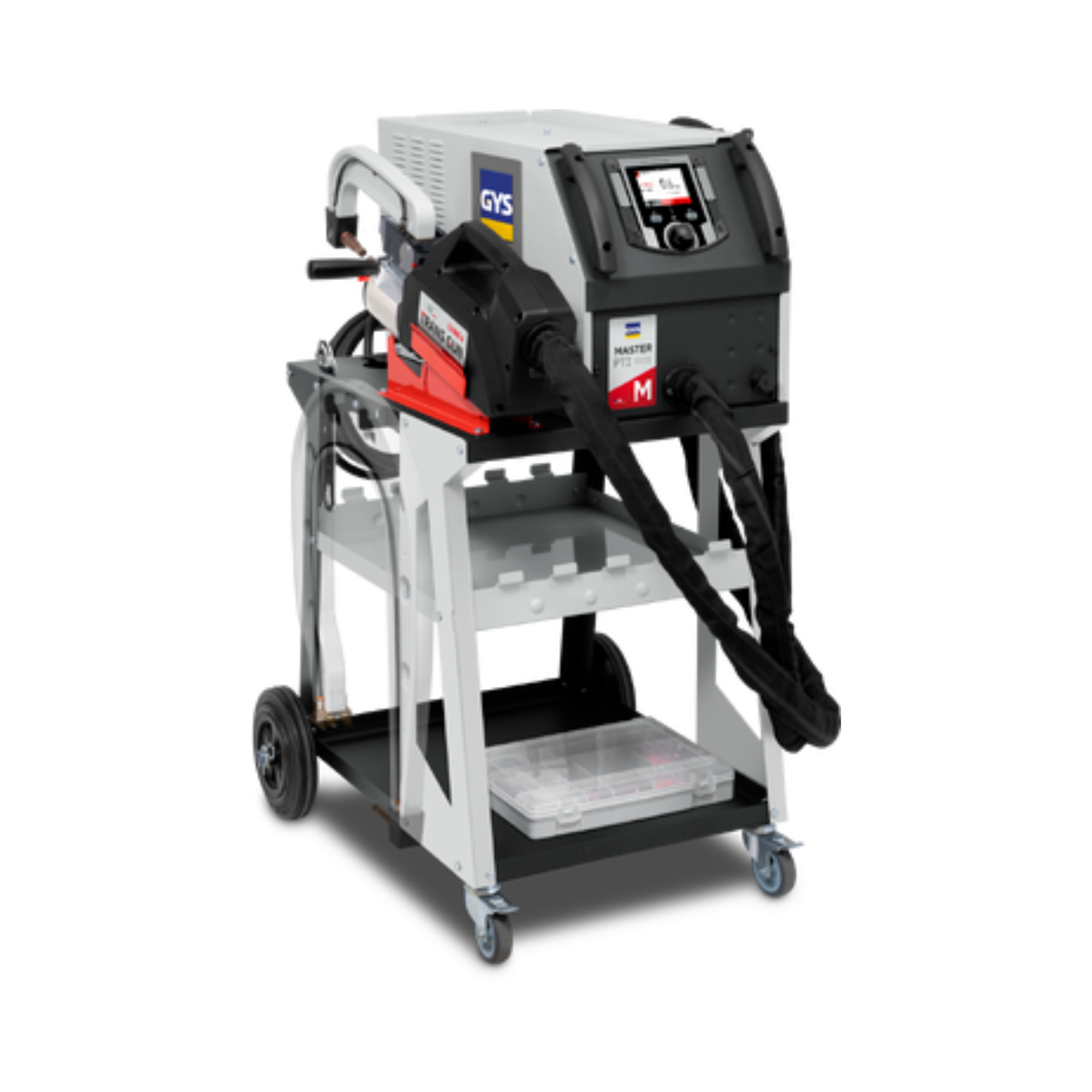

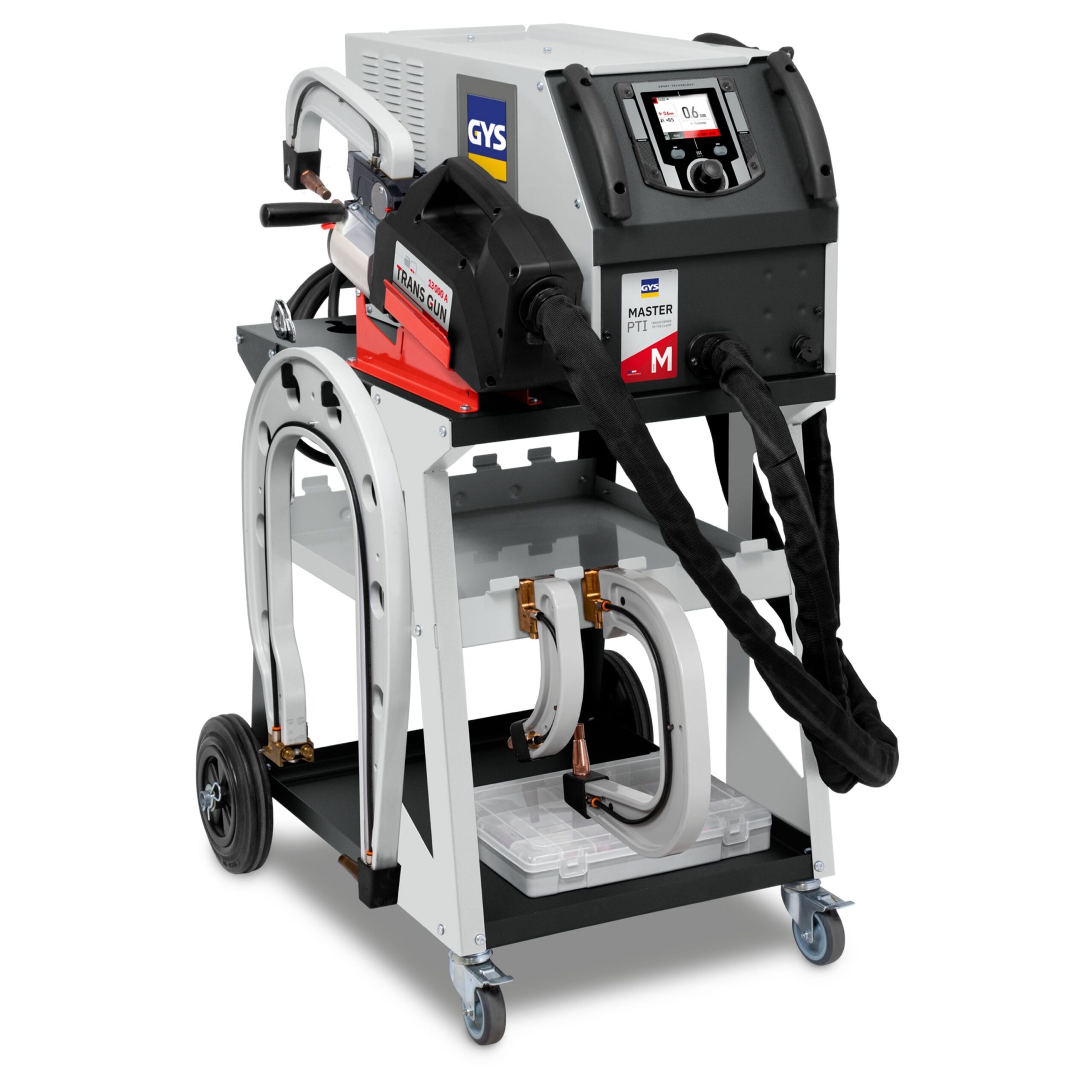

GYSPOT PTI MASTER – 208/240 V Resistance Spot Welder
The GYS GYSPOT PTI MASTER is an automatic resistance spot welder designed for professional automotive collision repair. It delivers up to 13,000 A of welding current and features automatic welding parameter selection, liquid cooling, and a lightweight welding gun with an integrated transformer.
Its intelligent welding gun automatically determines the correct welding parameters. The PTI MASTER also features manual over-opening, a 3.5-inch color display, and a compact design for easy maneuverability around the workshop.
Key Features
13,000 A Maximum Welding Current: Designed for welding automotive steels, including HLE/THLE, UHLE, and boron steel.
Liquid-Cooled System: Features a 1.32 US gallon cooling system for the transformer, electrodes, and caps.
Automatic Welding Mode: The intelligent welding gun automatically determines the correct welding parameters.
High-Speed Welding: Performs up to 10 spots per minute.
550 daN Clamping Force: Provides up to 550 daN at 117.5 psi.
Integrated Transformer: The welding gun features an integrated transformer to minimize power consumption.
Manual Over-Opening: Provides 2.95 inches of clearance between the two caps.
3.5-Inch Color Display: Provides intuitive navigation through the welding settings.
Compact Design: Features a small footprint and a machine weight of 138.9 lbs.

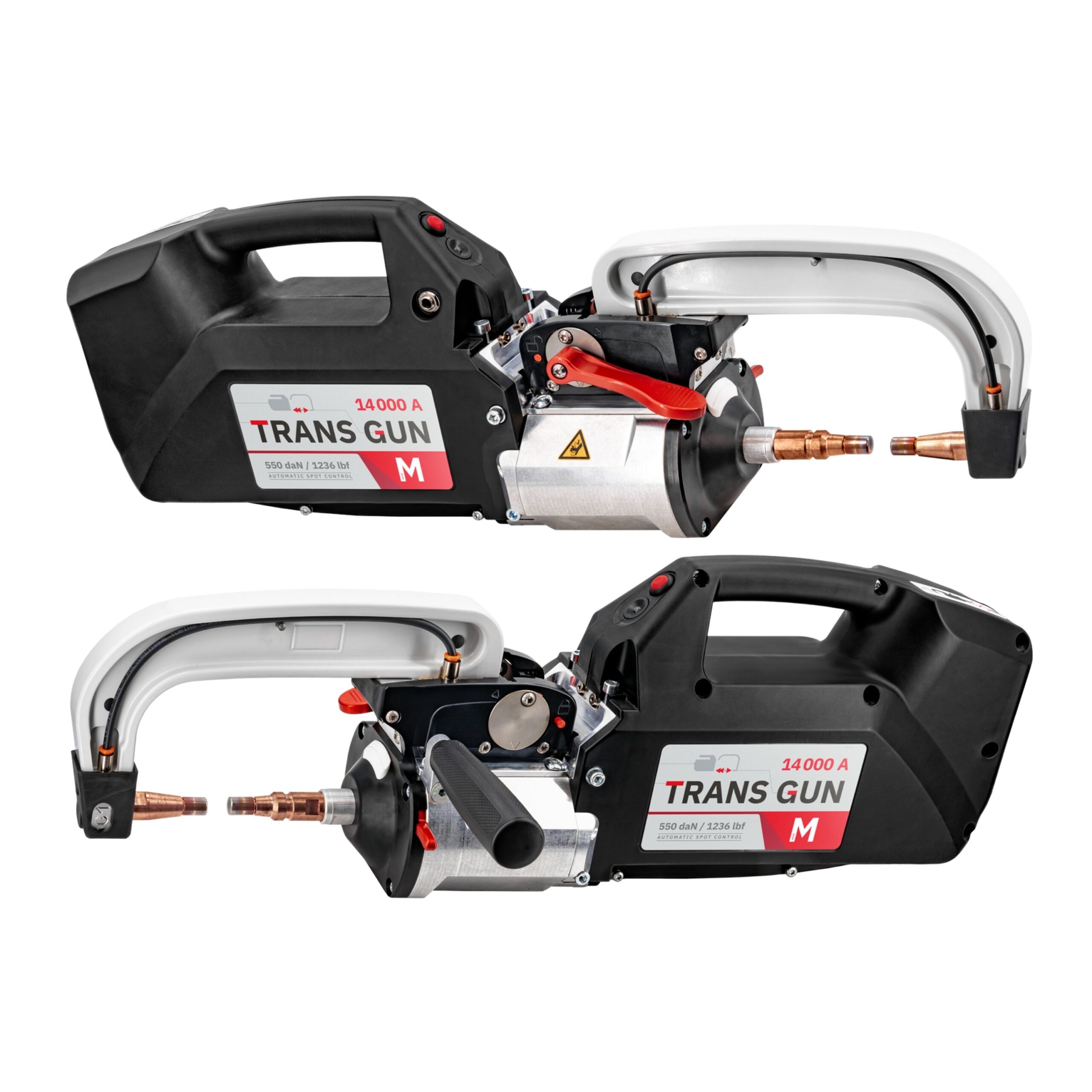

Lightweight Welding Gun: Weighs 22.7 lbs. when fitted with the G1 arm.
Premium G-Arms: Allows quick, tool-free welding arm changes.
Automatic Coolant Connections: Features automatic connection of coolant connectors.
USB Traceability: Welding data can be exported via USB for reporting purposes.
USB Machine Updates: Supports machine updates using a USB stick.
