GYSPRESS 10T PP CONTROL 063860 – Smart Riveting

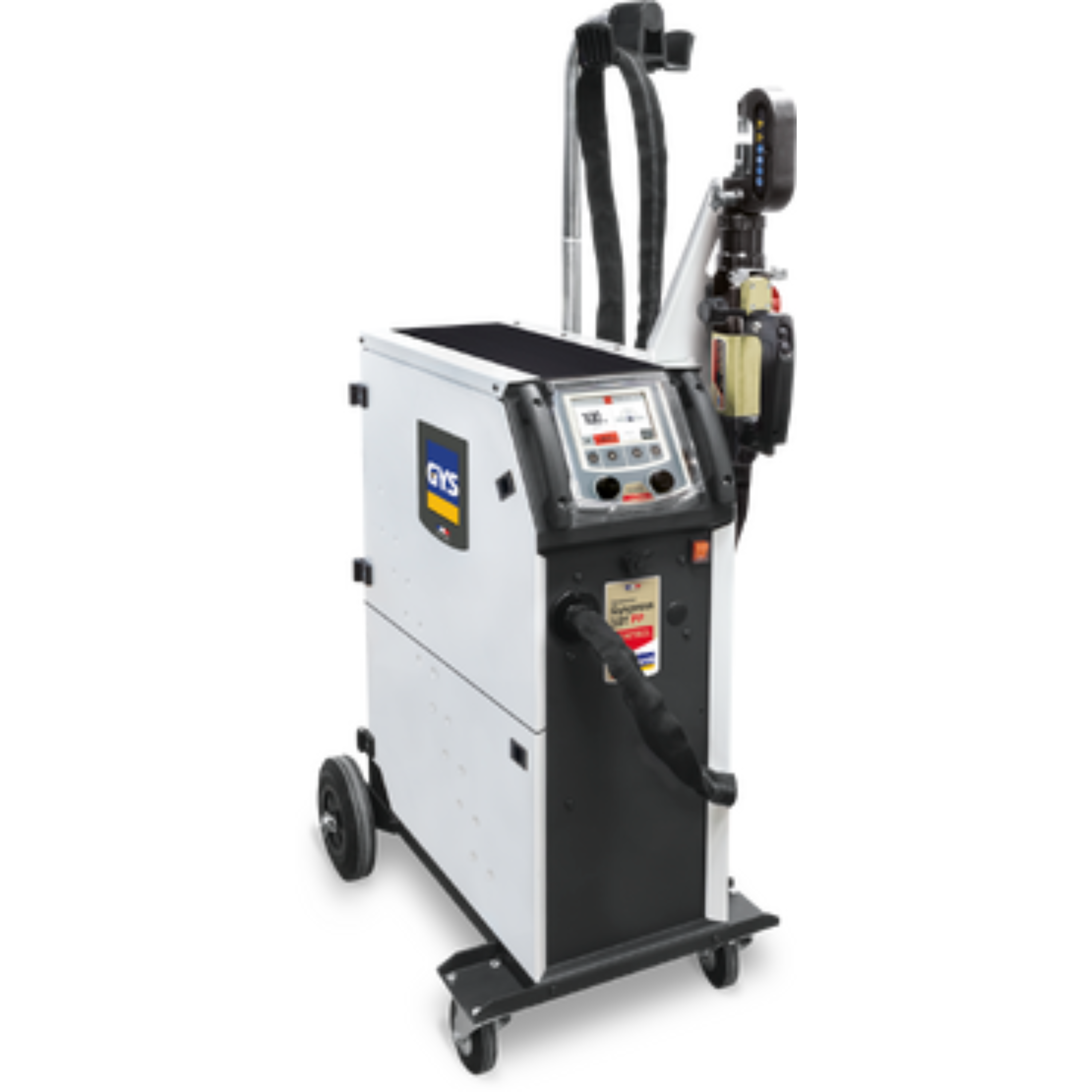

The WORKSTATION GYSPRESS 10T PP CONTROL 063860 is a riveting station fitted with a smart user interface for choosing different dies and synergy settings. Its Push-Pull system allows the installation of manufacturer-specific rivets, including self-punching rivets, Flow-Form rivets and solid rivets. The technical regulation of the riveting force ensures accurate riveting operations.
User Friendly and Efficient
- Maximum force of 100 kN, easily adjustable with precision of +/- 2.5%.
- Quick and easy changing of the riveter’s arm.
- Two control buttons: one for riveting and the other for opening the riveting machine or extracting the punches.
- C-arm rotates 360° around the riveting machine’s axis.
- Several arms provide access to vehicles in different situations.

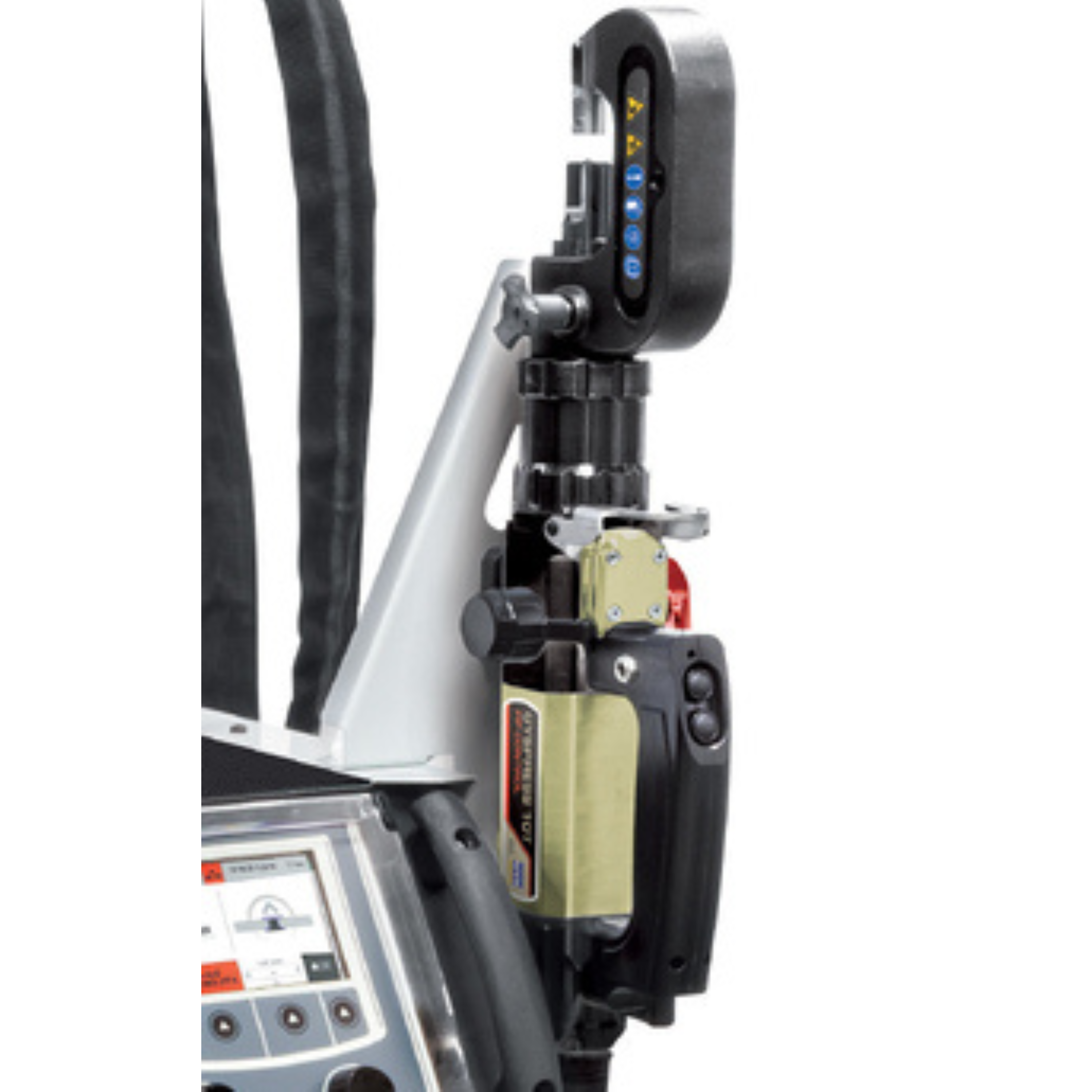

- Ergonomic handle with single-finger trigger.
- Push-Pull system facilitates removal of dies after piercing sheet metal.
Smart Riveting
Synergic Mode: The interface guides the user on the dies to be used and the required force, depending on the type of rivet being placed.
Traceability: Riveting operations can be recorded for complete traceability. Playback is recorded on a PC.
Regulating the Setting Force
A built-in hydraulic pressure sensor allows the riveter to check that the required installation force has been achieved.
Multi-Brand Applications
Designed for repairing numerous makes of vehicles, including VW Group, Mercedes-Benz, BMW, Tesla, Ferrari, Ford and General Motors.
Robust and Mobile

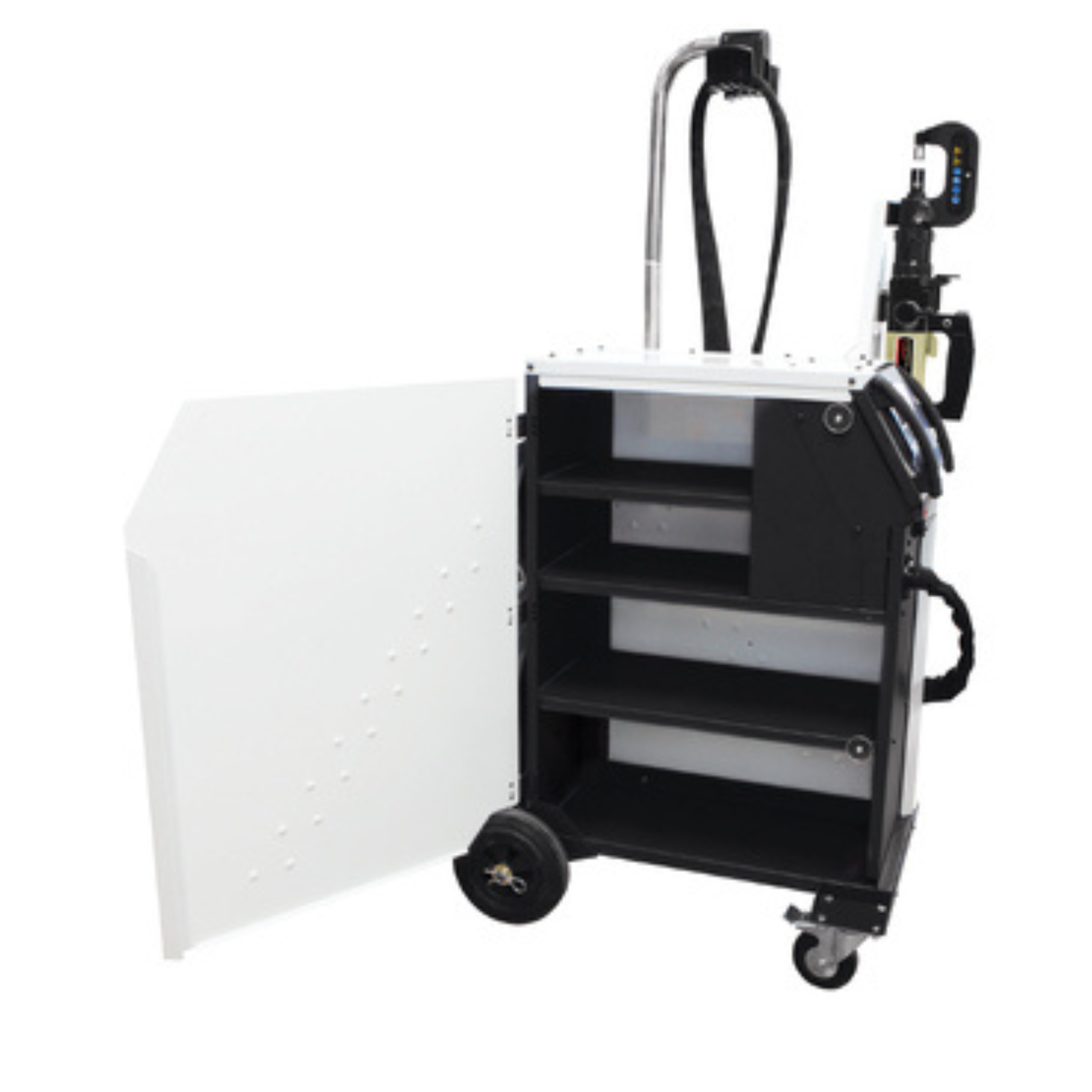

- Reinforced casing and manoeuvrable trolley with built-in storage unit.
- Spacer on the front wheels for better stability.

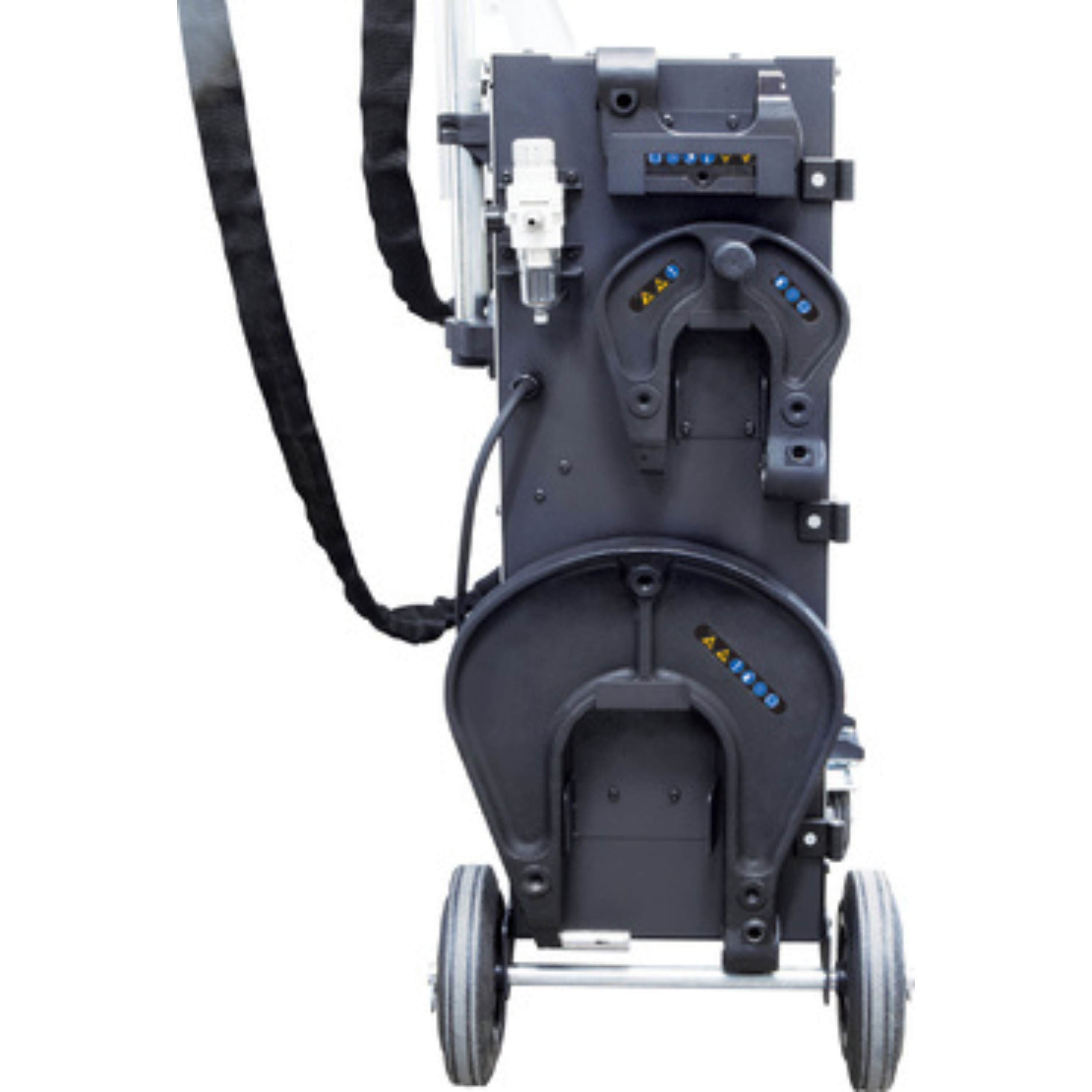

- Integrated three-arm support.
Technical Specifications
Part Number: 063860
Maximum Force: 100 kN
Force Precision: +/- 2.5%
Cycle Time: 4 seconds
Air Pressure: Normal 6.5 bar, maximum 10 bar
Dimensions: 74 × 116 × 50 cm
Weight: 54 kg
