Description

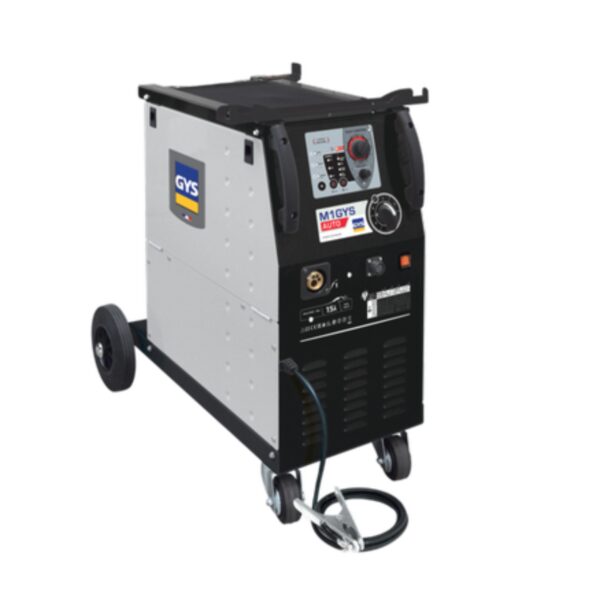

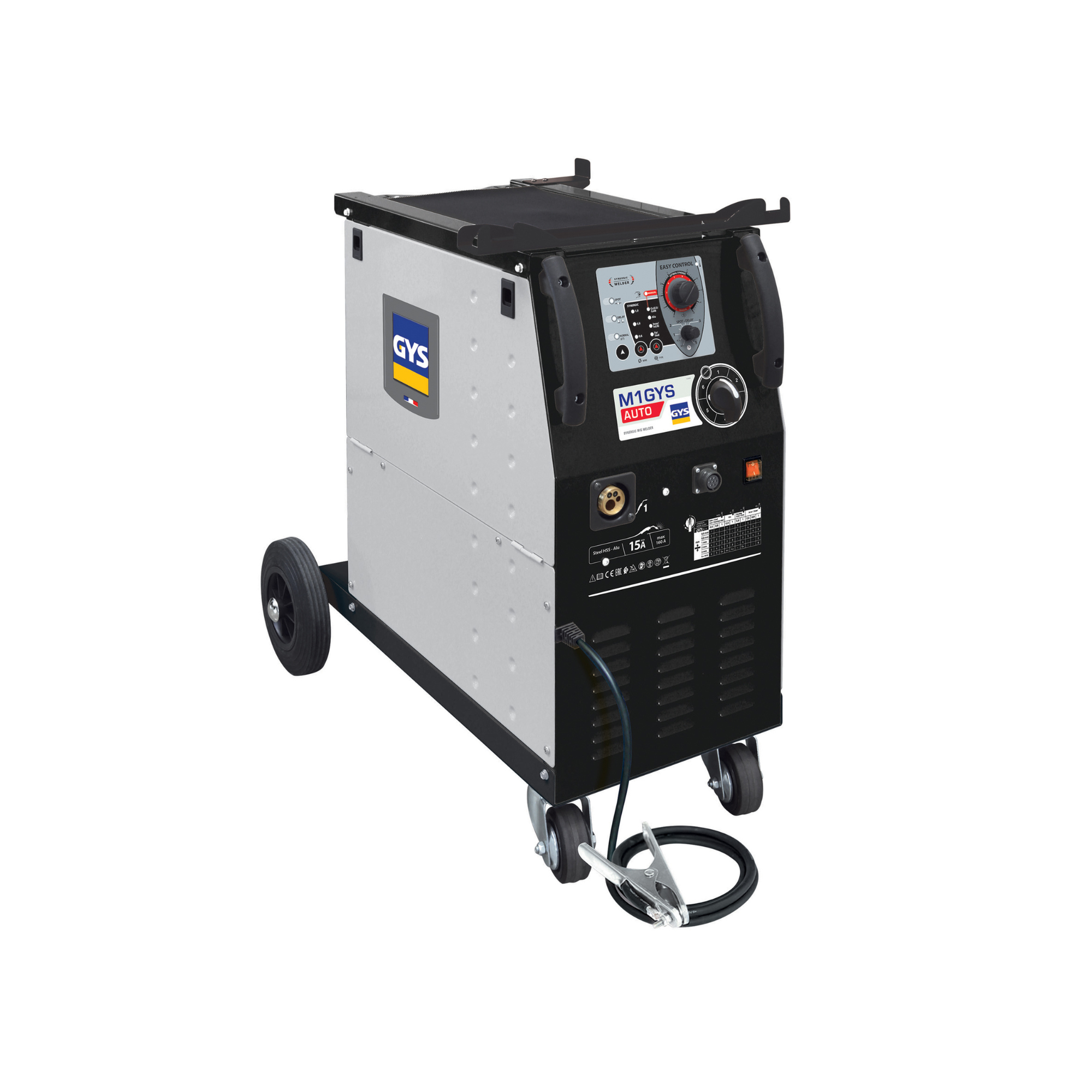

The GYS M1 AUTO 032088 is a single-phase synergic MIG/MAG welding machine designed for professional car-body repair. It is recommended for welding steel, stainless steel, aluminum and for MIG brazing high-tensile-strength steels with CuSi and CuAl wires.
Synergic Mode
The synergic mode determines the optimum wire speed based on the selected wire type, wire diameter and welding current.
Welding Applications
- Steel
- Stainless steel
- Aluminum
- MIG brazing with CuSi and CuAl wires
Spool Gun Connector
The M1 GYS AUTO can be fitted with a spool gun torch for car-body repairs involving aluminum, including AlSi5 and AlSi12 wires.
Wire Feed System
- 4 drive-roll motor
- Suitable for Ø 200 mm and Ø 300 mm wire reels
- Maximum wire reel weight: 15 KG
- Wire diameter range: 0.6–1.0 mm
Welding Parameter Memory
The machine provides a memory-save function for welding parameters, including wire diameter, wire type and welding mode.
Welding Modes
- Standard (2T)
- Spot
- Delay
Specifications
Part Number: 032088
Power Supply: 208–240 V, single-phase
Current Range: 15–160 A
Wire Diameter: 0.6–1.0 mm
Wire Reel Diameter: Ø 200 mm / Ø 300 mm
Maximum Wire Reel Weight: 15 KG
Duty Cycle at 40°C: 90 A @ 60%; 140 A @ 15%
Dimensions: 47 × 77 × 79 cm
Weight: 50 KG
Generator Compatibility: 4.5 kVA
Standard: EN 60974-1
