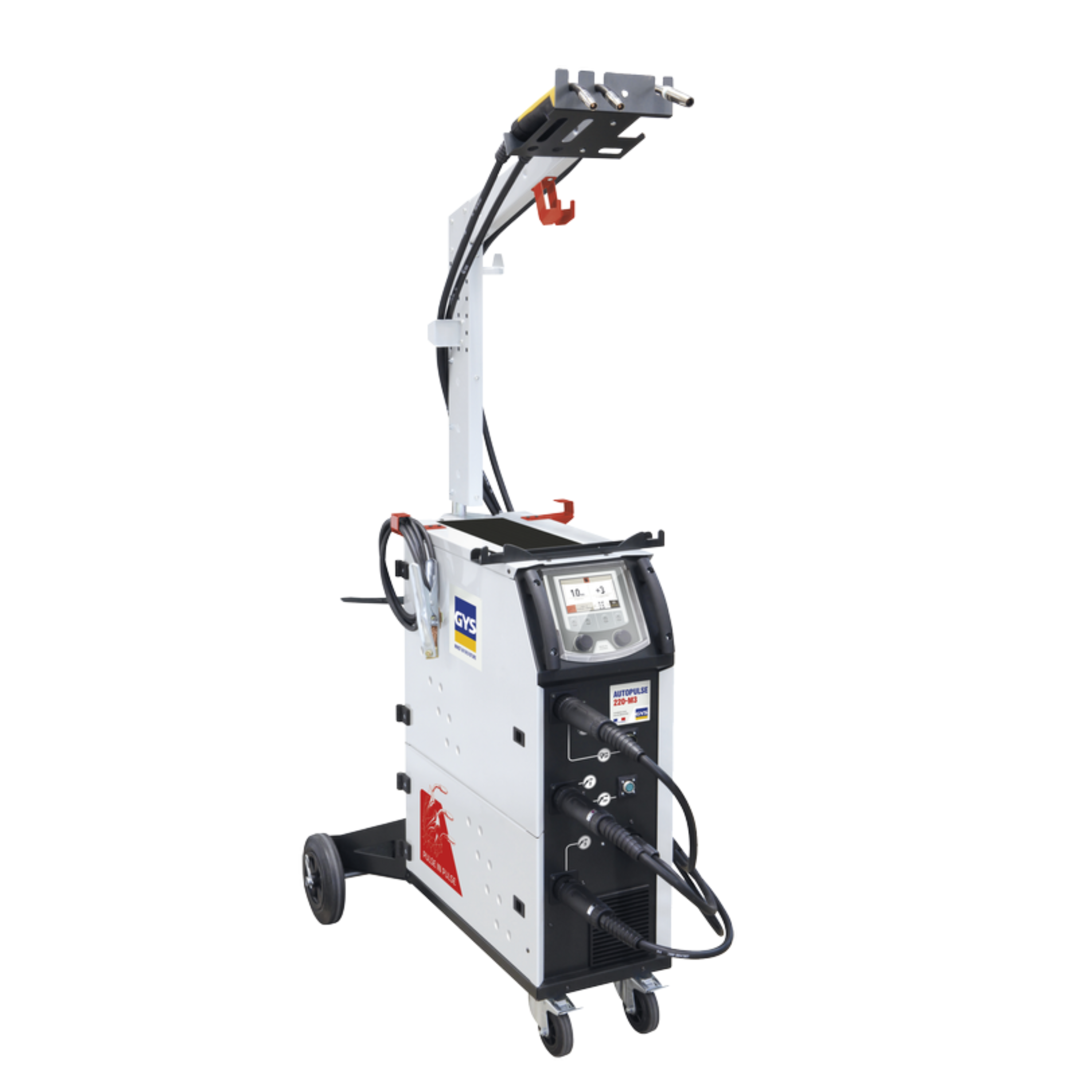

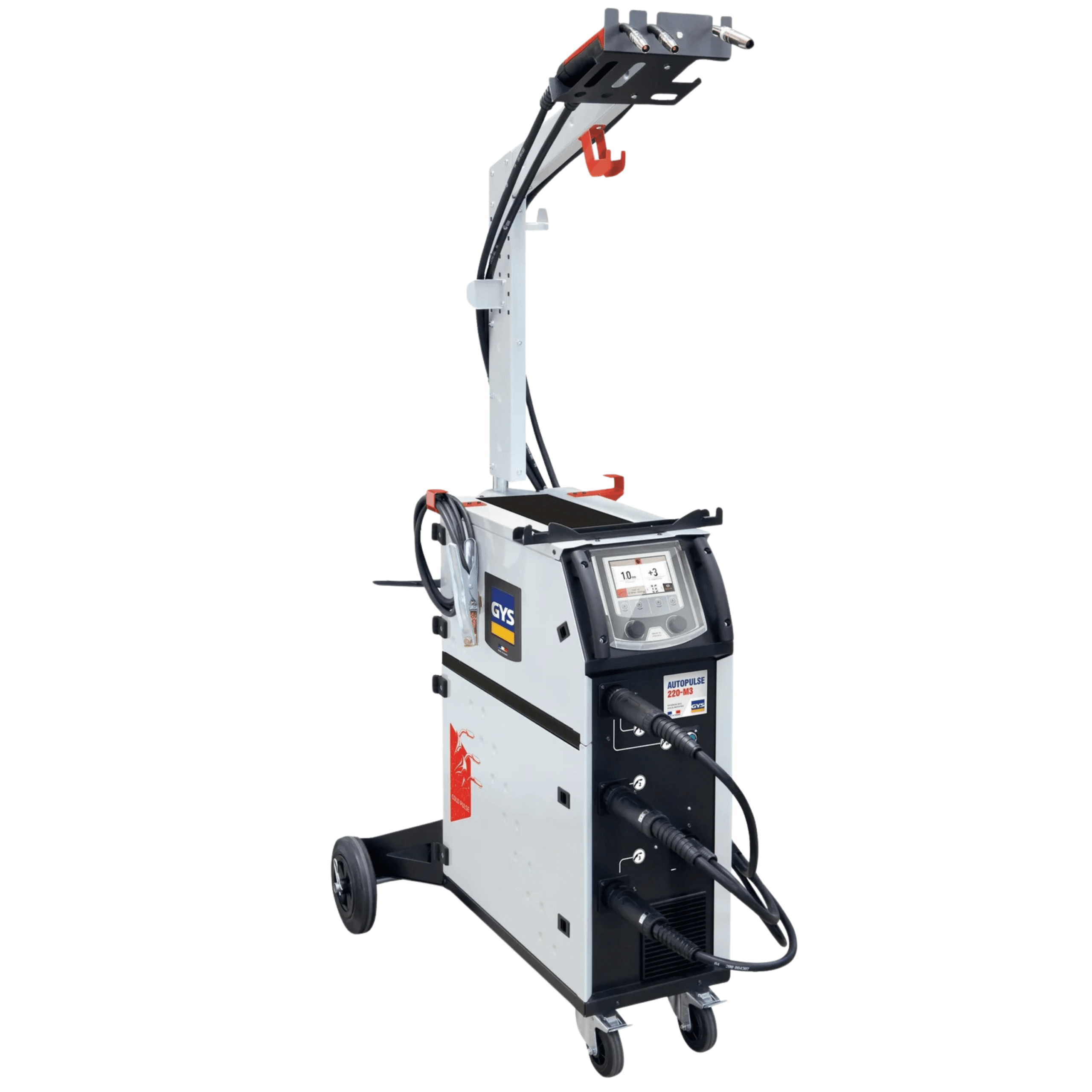

AUTOPULSE 220-M3 – Product Overview
The AUTOPULSE 220-M3 is a pulsed MIG/MAG welding generator with three integrated wire feeders, designed for car-body repair applications. Equipped with digital PFC (Power Factor Correction), it provides welding performance comparable to three-phase products.
Designed for welding steel, aluminum and brazing with CuSi3/CuAl8, the AUTOPULSE 220-M3 combines three welding torches, a simplified interface and precise wire feeding for welding thin sheet materials.
Optimized MIG/MAG Settings
- Welding Processes: Standard, Pulse, Pulse in Pulse, Cold Pulse and Manual.
- Trigger Modes: 2T, 4T, SPOT, DELAY and TACK.
- Welding Cycle Control: CreepSpeed, Softstart, Hotstart, Upslope, Downslope, Crater Fill and Post Gas.
- Aluminum Wire: 0.8 / 1.0 / 1.2 mm.
- Steel Wire: 0.6 / 0.8 / 1.0 mm.
- Stainless Steel Wire: 0.8 / 1.0 mm.
- CuSi and CuAl Wire: 0.8 / 1.0 mm.
- Two separate wire compartments help isolate the aluminum wire from other materials.
Simplified Welding
- 68 adjustable synergic curves for different materials, wire sizes and gases.
- Fully synergic mode automatically calculates welding parameters.
- Wire speed, voltage and current can be adjusted by the operator.
Maximum Productivity
- Four microprocessors for increased processing power.
- Three-wheel drive system with two active drive rolls.
- Accepts up to three 200 mm wire reels.
- Automatic torch detection when the trigger is pulled.
- Balancing arm with support for three torches and a welding helmet.
- Compatible with 24 V Push Pull torches.
Ergonomic Interface
- Simplified, centralized interface designed for car-body repair operations.
- Large color screen for welding cycle setup.
- Two control knobs and four keys for menu navigation.
- Machine and synergic updates through a USB key.
- Storage for up to 500 welding programs.
- Three interface options: EASY, EXPERT and ADVANCED.
Robust and Mobile Design
- Reinforced structure.
- Low-loading frame supporting two gas bottles (2 x 4 m3).
Technical Specifications
Brochure Reference: 036703
Power Supply: 200–240 V single-phase
Welding Current: 15–220 A
Fuse: 16 A
Wire Diameter: 0.6–1.2 mm
Wire Reel Diameter: 200 mm
Wire Feed Speed: 1–20 m/min
Duty Cycle: 150 A at 60% / 130 A at 100% (40°C)
No-Load Voltage: 80 V
Dimensions: 90 x 63 x 92.5 cm
Weight: 69 kg
Protection Rating: IP21
Generator Compatibility: 10 kVA
Welding Standard: EN 60974-1
