Description

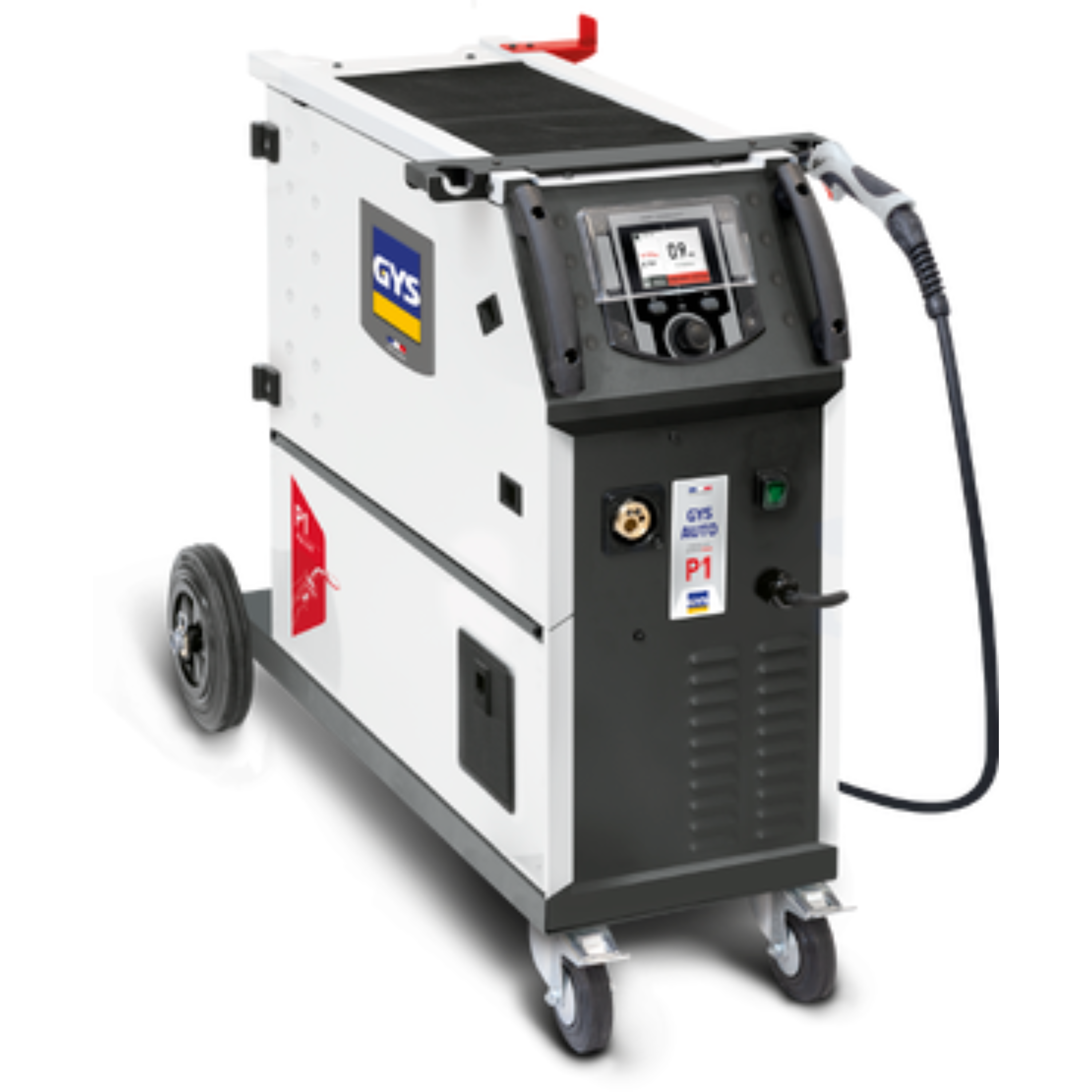

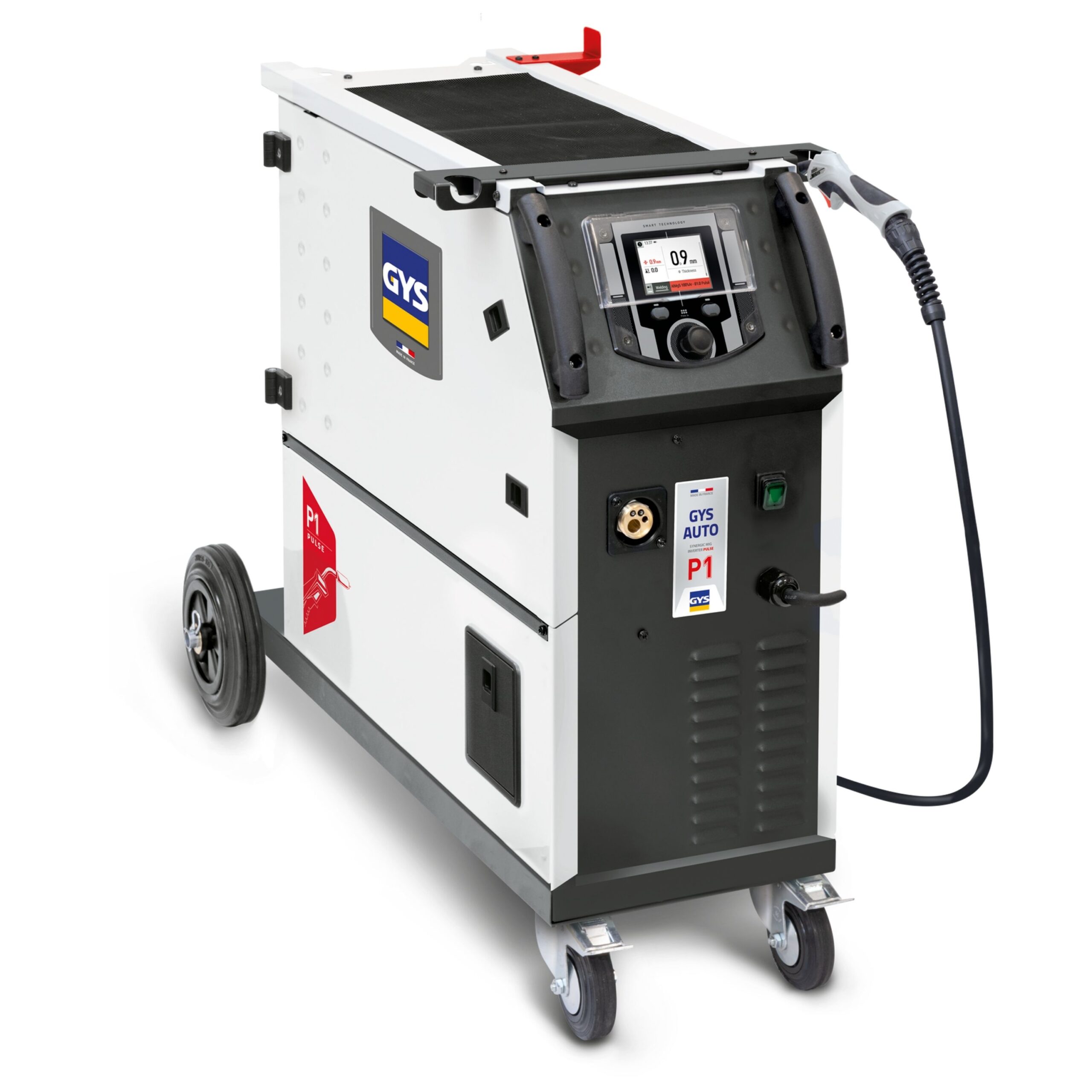

P1 GYS AUTO 080584 – Product Overview
The P1 GYS AUTO 080584 is a 220 A single-phase synergic MIG/MAG welding unit specially designed for car body specialists. It can weld all kinds of aluminum workpieces spatter-free. Fitted with a highly intuitive color interface, it can weld a wide range of steel, aluminum and brazing alloys (CuSi3/CuAl8), even on thin 1.0 mm and 1.2 mm material, using a dedicated pulse mode.
MIG/MAG Welding
MIG/MAG Smooth + Pulse:
- Steel and stainless steel wire: Ø 0.6 to 1.2 mm.
- Aluminum wire: Ø 0.8 to 1.2 mm.
- CuSi and CuAl wire: Ø 0.8 and 1.0 mm.
Intelligent Welding Technology
- Specific synergies: Steel, AlMg, AlSi, CrNi and CuSi.
- After entering the wire diameter, material/gas and thickness of the material being welded, the product automatically determines the optimum welding conditions.
- PFC technology: Power Factor Correction adjusts to input voltages from 185 to 265 V.
- Intuitive, multilingual 3.5-inch HMI.
- Machine and synergy updates via USB stick.
- Job memory for up to 200 welding programs.
- Portability function allows user jobs and machine configurations to be loaded, saved and transported via USB stick.
- On-demand ventilation system to reduce dust ingress.
Premium Welding Performance
- Digital arc control with rapid ignition.
- High arc stability to reduce spatter.
- Four-roller wire feeder with digital encoder for flawless wire feed.
- Four MIG/MAG welding modes: Dynamic Standard, Pulse, ModulArc and Manual.
Two Display Modes
Easy: A simplified interface adapted to the vast majority of users for optimum welding quality.
Expert: A dedicated interface for experienced welders with the ability to adjust welding cycle parameters.
Welding Operation
2T: Welding takes place with the trigger held down. Welding stops when the trigger is released.
4T: Welding takes place with the trigger released for continuous welding. To stop welding, press and release the trigger again.
Ergonomic Design
- Reinforced wheels for stability and manoeuvrability.
- Gas cylinder support up to 4 m³ (20 L).
- IP23S rated to withstand difficult environments.
- Storage compartment.
Technical Specifications
Part Number: 080584
Power Supply: 230 V single-phase
Welding Current: 10–220 A
Maximum Input Current: 30.3 A
Rated Capacity: 6.97 kVA
Wire Feed Speed: 1–20 m/min
Dimensions: 75 × 45 × 80 cm
Weight: 48 kg
Protection Rating: IP23S
