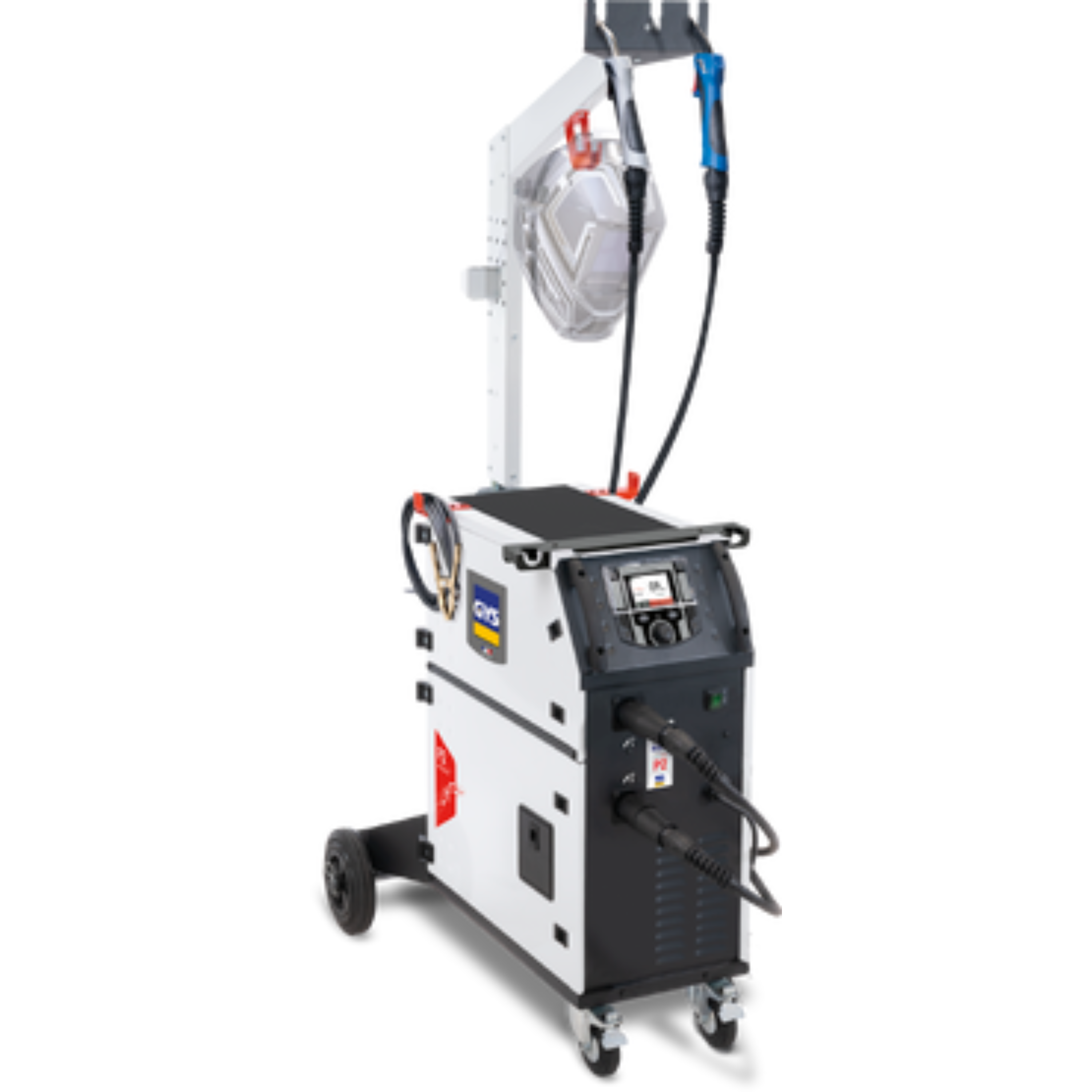

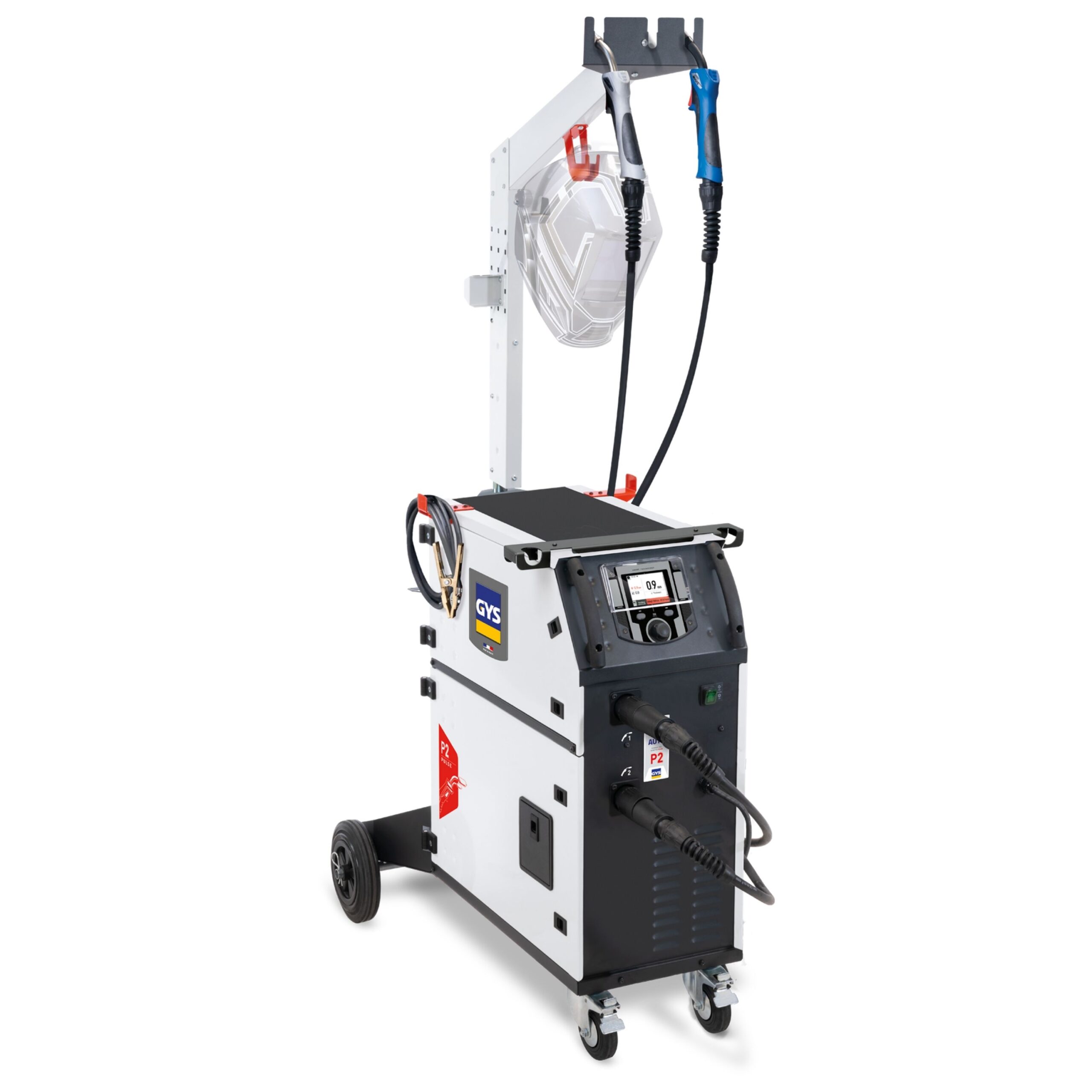

P2 GYS AUTO 083134 – Product Overview
The P2 GYS AUTO 083134 is a 220 A single-phase synergic MIG/MAG welding unit with two integrated wire feeders, specially designed for bodywork specialists. It can weld steel, aluminum and brazing alloys (CuSi3/CuAl8), including thin gauges of 1.0 mm and 1.2 mm, using a pulse function. Its intuitive color interface makes it suitable for a wide range of welding applications.
MIG/MAG Welding
MIG/MAG Smooth + Pulse:
- Aluminum wire: Ø 0.8 to 1.2 mm.
- Steel wire: Ø 0.6 to 1.0 mm.
- CuSi and CuAl wire: Ø 0.8 and 1.0 mm.
Intelligent Welding Technology
- Specific synergies: Steel, AlMg, AlSi, CrNi and CuSi.
- After entering wire diameter, material/gas and workpiece thickness, the product automatically determines the optimum welding conditions.
- PFC technology: Power Factor Correction accommodates input voltages from 185 to 265 V.
- Intuitive, multilingual 3.5-inch HMI.
- Machine and synergy updates via USB stick.
- Job memory for up to 200 welding programs.
- Portability function allows jobs and machine configurations to be loaded, saved and transported using a USB stick.
- On-demand ventilation system to reduce dust ingress.
Premium Welding Performance
- Digital arc control with instant ignition.
- Excellent arc stability to minimize spatter.
- Four-roller wire feeder with digital encoder for precise wire feed.
- Five MIG/MAG welding modes: Synergic, Standard, Pulse, ModulArc and Manual.
Two Display Modes
Easy: A streamlined interface suitable for the vast majority of users, for optimum weld quality.
Expert: A dedicated interface for more experienced users, allowing adjustment of welding cycle parameters.
Welding Operation
2T: Welding takes place with the trigger held down. Welding stops when the trigger is released.
4T: Welding takes place with the trigger released, for continuous operation. To stop welding, press and release the trigger again.
Ergonomic Design
- Reinforced wheels for stability and manoeuvrability.
- Support for two gas cylinders up to 2 × 4 m³ (20 L).
- IP23S rated for use in difficult environments.
- Storage compartment.
Technical Specifications
Part Number: 083134
Power Supply: 230 V single-phase
Welding Current: 10–220 A
Maximum Wire Diameter: 1.2 mm
Wire Feed Speed: 1–20 m/min
Dimensions: 86 × 63 × 93 cm
Weight: 59 kg
Protection Rating: IP23S
