Description

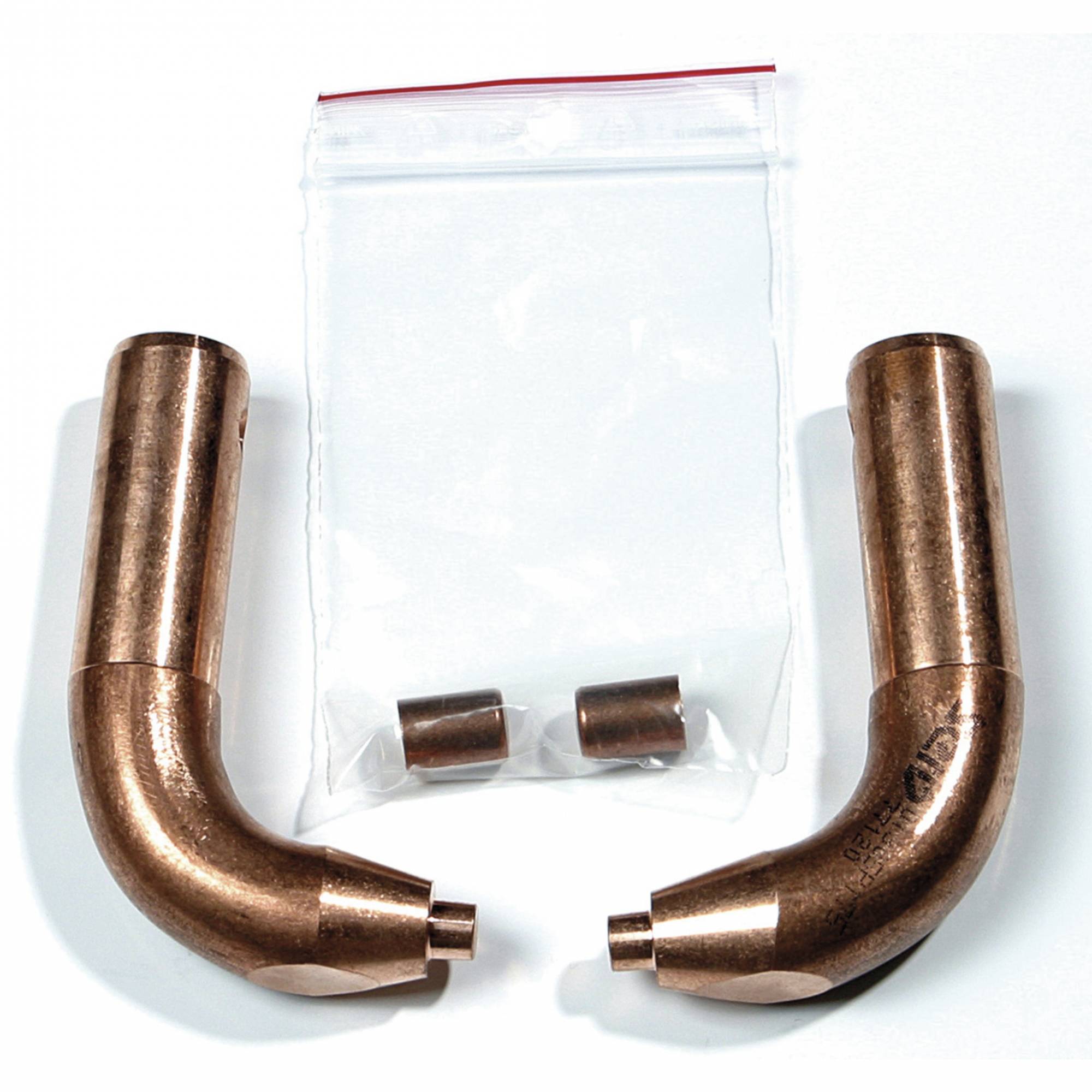

The GYS X1 Copper Offset Spot Welding Arms (050501) are a set of two 120 mm copper electrode arms designed for resistance spot welding applications in automotive collision repair. Built for compatible liquid-cooled GYSPOT X-clamp welding systems, these offset arms include two 13 mm Type A electrode caps and provide up to 550 daN clamping force at 8 bar.
Features & Applications
- Set of two X1 copper offset spot welding arms
- 120 mm arm design for resistance spot welding
- Includes two 13 mm Type A electrode caps
- Copper arm construction
- Up to 550 daN clamping force at 8 bar
- Designed for compatible liquid-cooled GYSPOT X-clamp welding systems
- Suitable for professional automotive collision repair applications
Kit Contents
- 2 X1 copper offset arms – 120 mm
- 2 Type A electrode caps – 13 mm diameter
Compatible GYSPOT Welders
- GYSPOT BP.LX
- GYSPOT BP.LCX
Compatible Consumables & Accessories
- Box of 40 Type A Caps – GYS 048935
- 6 Round Type A Caps – GYS 049987
- Contact Grease – GYS 050440
- Welding Caps Spanner – GYS 050846
Specifications
- Brand: GYS
- Reference: 050501
- Model: X1
- Product Type: Copper offset spot welding arms
- Quantity: 2 arms
- Material: Copper
- Arm Size: 120 mm
- Electrode Caps: Type A, 13 mm
- Operating Pressure: 8 bar
- Clamping Force: Up to 550 daN
- Clamp Type: Liquid-cooled X-clamp
- Application: Automotive resistance spot welding
